AKG WMS470 Vocal Set D5 Wireless

Price List Rp.5.863.000

AKG WMS470 Vocal Set D5 Wireless

Setting up a high-end wireless system has never been so easy. The WMS 470
the advantages of the high-end WMS 4500 electronics with the user friendliness of an entry-level system.

• NEW automatic frequency setup function
• Rugged and reliable for professional applications
• Up to 48 wireless channels and 16 channels within a single frequency band
• Pilot tone system prevents unwanted noise
• Space diversity receiver with all-metal case for reliable reception
• AKG reference compander technology for superior sound
• Quick and easy transmitter setup via infrared
• Programmable warning functions

SR470:
The receiver shall be a stationary diversity design with pilot tone, 1200 carrier frequencies that can be programmed within a 30 MHz wide subband and a rugged halfrack case with backlit liquid crystal color display. The receiver shall provide indicators for audio and RF levels; diversity mode (A/B); transmitter battery status; name, frequency, frequency group, and preset (country) name. The color of the backlighting shall change between green and red to indicate normal operation or display userselectable warning messages (low battery capacity, audio level, RF level, etc.). The receiver shall select intermodulation-free frequencies automatically from an integrated frequency database arranged by local frequency allocations and provide an automatic function for finding dead spots. An infrared radiator shall transmit setup parameter data to the transmitter. Rear panel BNC sockets shall allow either the supplied antennas or a complex antenna network to be connected to the receiver. The squelch threshold shall be adjustable between –80 and –100 dBm. The receiver’s audio bandwidth shall be 35 Hz to 20 kHz; S/N 120 dB(A); THD <0.3% at 1 kHz. Audio outputs shall comprise a balanced 3-pin XLR output switchable to –30 dB or 0 dB and an unbalanced 1/4" TS jack. The receiver shall provide a lockable DC input for the supplied 12 V DC power supply. The receiver shall measure 200 x 44 x 190 mm (W x D x H) and weigh 972 g. The receiver shall be the AKG SR 470 or equivalent.

HT470:
The handheld transmitter shall be housed in a miniature body and provide pilot tone, 1200 carrier frequencies that can be programmed via infrared within a 30 MHz wide subband. An LC display shall indicate the transmitter battery capacity in hours, as well as the frequency, frequency group, and preset name. An outside infrared sensor shall allow the frequency and input gain setting to be programmed, and a silent mode shall permit the transmitter to be used legally in R&TTE countries. The transmitter shall transmit low battery capacity and muting information to the receiver and use an integrated dipole transmitting antenna. The transmitter shall be available with an RF output of 10 mW or 50 mW (ERP). The transmitter shall provide a central on/mute/off switch with IR programming and silent mode functions. Charging contacts on the bottom panel shall allow the easy charging of a rechargeable battery inside the transmitter. The audio bandwidth of the transmitter shall be 35 Hz to 20 kHz; S/N 120 dB(A); THD at 1 kHz <0.7%. The transmitter shall operate off one AA size dry battery for >7 hours, up to 8 hours off one AA size NiMH rechargeable battery and up to 14 hours off one AA size FR6 lithium battery. The handheld transmitter shall measure 236.9 mm long x 51.1 mm max. dia. and weigh 240 g. An stand adapter shall be included as a standard accessory. The handheld transmitter shall be the AKG HT 470 or equivalent.

AKG CK33 Capsule Module

Price List Rp.1.417.000
AKG CK33 Capsule Module Microphone
Due to the narrow 95° pickup angle, the hypercardioid polar pattern is a good choice for all situations when noise typically arrives from the sides (especially in places of worship), where people talk into the microphone from greater distances, or where several talkers are grouped side by side. The body is identical to that of the CK 31 and CK 32.
Suitable Discreet Acoustics modules: all GN gooseneck modules, HM 1000 hanging module.

• Hypercardioid polar pattern
• 95° pickup angle
• Screw-on Capsule Module
• Highly efficient windscreen

The microphone shall be a screw-on hypercardioid capsule that mates with the AKG Discreet Acoustics Modular Series. The microphone shall accept phantom powering over the universal range from 9 to 52 volts dc. The response of the microphone shall be flat on-axis from 50 Hz to 20 kHz, with a 6 dB/octave rolloff below 200 Hz and response at 20 kHz that is no more than –6 dB, relative to the midband response. The microphone shall have a sensitivity no less than 20 mV/Pa (–34 dBV), and the total harmonic distortion (THD) at an operating acoustical level of 125 dB shall be no greater than 1 %. The electrical impedance of the microphone shall be no greater than 600 ohms. Electrical mating contacts for mounting the microphone shall be gold plated for positive, trouble free operation over long periods. Net/shipping weight: 5/88 g (0.17/3.1 oz.).

Specification:

Polar pattern	hypercardioid
Frequency range	50 to 20,000 Hz
Max. SPL	125 dB (for 1 % THD)
Equivalent noise level	21 dB-A
Signal/noise ratio (A-weighted)	73 dB
Impedance	<=600 ohms
Recommended load impedance	>=2,000 ohms
Powering	<3 mA
Connector	Discreet Acoustics Modular standard
Finish	matte dark grey
Net weight	5 g (0.17 oz.)
Shipping weight	88 g (3.1 oz.)

AKG HM1000 Hanging Microphone

Price List Rp.1.599.000
AKG HM1000 Hanging Microphone

Theater, onstage miking, Surveillance, Houses of worship, Conferencing
Using microphones flown from the ceiling to record music or speech in places of worship, conference rooms, or on theater stages is becoming more and more popular.
A 10-m (33-ft.) special cable that is treated specially to reduce twisting to a minimum even if the temperature varies and a spring steel hanging clamp for precise microphone alignment will keep the microphone securely in its position.
A switchable LED ring helps the sound engineer to check system function during the soundcheck.
Available capsule modules for HM 1000: CK 31, CK 32, CK 33, CK 47, CK 80.

• Hanging module with rugged thread connection and self-cleaning, gold plated contacts
• For use with five different Capsule Modules
• Integrated switchable LED ring
• Integrated bass rolloff filter
• Rugged all-metal construction
• Non-reflective anthracite finish

The microphone hanging module shall have a cable no less than 33 ft. (10 meters) length and shall accommodate the family of miniature microphone capsules in the AKG Discreet Acoustic Modular series. The cable length shall be 10 m (33 ft.). The power module shall operate on phantom powering from 9 to 52 volts dc. The power module shall have a jumper actuated low frequency rolloff. The hanging cable shall be black, and the capsule assembly shall be grey.

Specification:

Bass filter	250 Hz, -10 dB at 50 Hz
Impedance	<=600 ohms
Recommended load impedance	>=2,000 ohms
Supply voltage	9 to 52 V phantom power to DIN/IEC
Powering	<2 mA
Connector	3-pin male XLR
Cable	10 m (33 ft.)
Finish	matte dark grey
Net weight	400 g (14.1 oz.)
Shipping weight	600 g (1.3 lbs.)

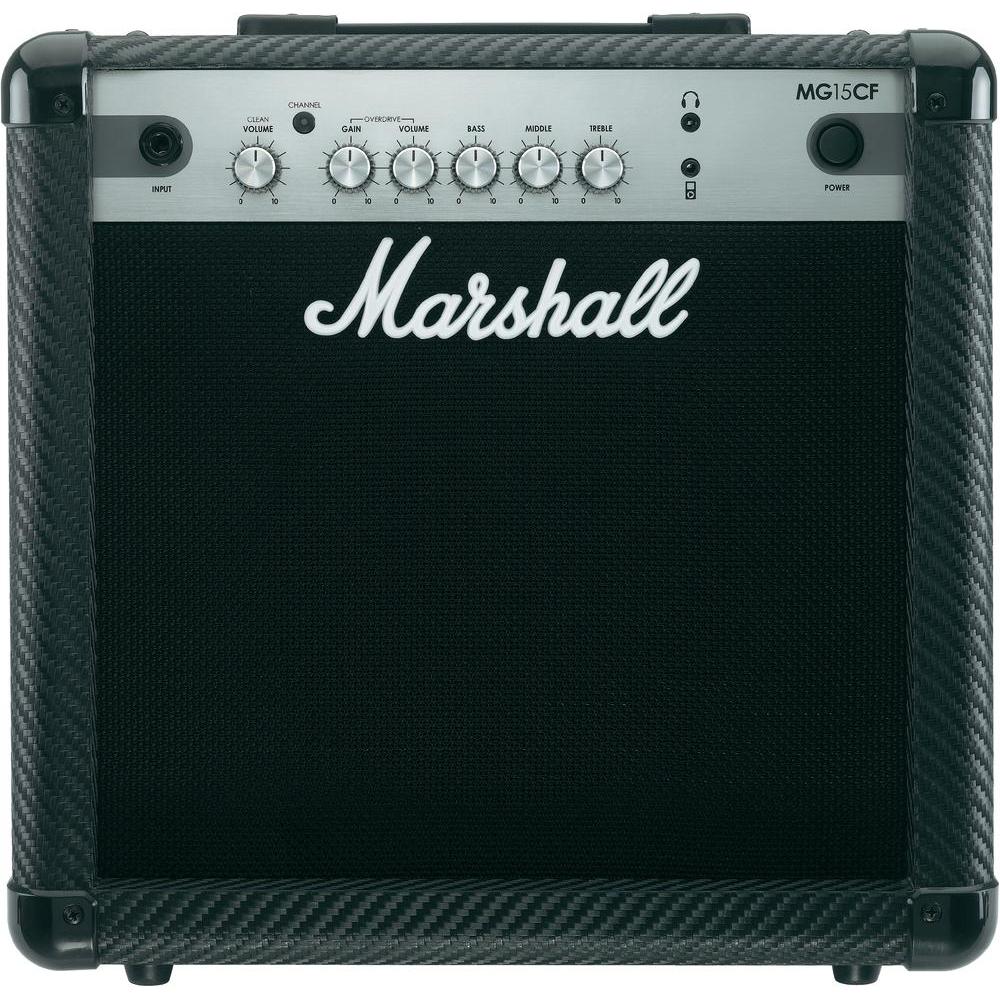

Marshall MG15CF Carbon Fiber Guitar Combo

Price List Rp.1.190.000

Marshall MG15CF Carbon Fiber Guitar Combo

With a totally new internal design and approach, the brand new Marshall MG10CF Carbon Fiber guitar combo amplifier delivers essential digital features, but with vast superior and programmable analogue tone at its heart.

Innovation, Functionality, Tone - just a few words that help sum up the brand new range of solid-state MG amplifiers from Marshall. Combining years of experience in analogue amplification with cutting-edge digital technology has resulted in the creation of an all-encompassing amplifier series, ideal for the beginner and gigging pro alike.

Specially voiced digital effects, intuitive footswitching technology and four adjustable and storable channels are just a few of the features found in the new MG range. From a punchy 10 watt combo through to an effects laden, soul pounding 100 watt head, this series has it all.
Features-

• Modern Brushed Silver Panel and Carbon Fiber Look Vinyl-
• Top Selling 2 Channel Amp-
• MP3 Input- Headphone Jack-
• 10 watts

Marshall MG10CF Carbon Fiber Guitar Combo

Price List Rp.920.000

Marshall MG10CF Carbon Fiber Guitar Combo

With a totally new internal design and approach, the brand new Marshall MG10CF Carbon Fiber guitar combo amplifier delivers essential digital features, but with vast superior and programmable analogue tone at its heart.

Innovation, Functionality, Tone - just a few words that help sum up the brand new range of solid-state MG amplifiers from Marshall. Combining years of experience in analogue amplification with cutting-edge digital technology has resulted in the creation of an all-encompassing amplifier series, ideal for the beginner and gigging pro alike.

Specially voiced digital effects, intuitive footswitching technology and four adjustable and storable channels are just a few of the features found in the new MG range. From a punchy 10 watt combo through to an effects laden, soul pounding 100 watt head, this series has it all.
Features

• Modern Brushed Silver Panel and Carbon Fiber Look Vinyl-
• Top Selling 2 Channel Amp-
• MP3 Input-
• Headphone Jack-
• 10 watts

Marshall MB15 Combo Bass Amplifier

Price List Rp.1.400.000

Marshall MB15 Combo Bass Amplifier

Packing a punch with its mere 15 watts of power through an 8-inch speaker, The MB15 is the perfect compact combo amp for the artist who knows what an amp should sound like. Pros know that when it comes to tone, Marshall is a trusted advisor. Use for practice or small stages and take advantage of its dual channels, built-in EQ and compression and voice control functionality you don't usually get from an amp of this size.
Features

• 8-inch Speaker with 15 watts of Driving Power
• Emulated DI output
• Dual Channel Operation
• Built in Compression and Limiting
• 3-band EQ with Adjustable Mid-Voicing

Specifications

• Power Output: 15W RMS into 4 ohms
• Main Bass Guitar Input Impedance: 1M ohm
• CD Input Impedance: 22k ohms
• Emulated Output Level: -10dBV
• Weight: 23.8 lbs (10.8 kg)

Dimensions (WxHxD):

15.4 x 15 x 9.4 in. (390 x 380 x 240 mm)

Dimensions and Weight in Packaging

Shipping Weight: 30 lbs

Shipping Dimensions: 18 x 13 x 18 in

Powersoft K3DSP Digital Power Amplifier

Price List Rp.48.700.000

Powersoft K3DSP Digital Power Amplifier
2-Channel Power Amplifier for High Performance Touring
The most versatile model due to an attractive mix of features, size and output power, making the K3 an outstanding value. It is built on same technologies as every other K Series model, and indeed, the K3 produces the same great sound quality, no matter what type of loudspeaker it is connected to.

In use worldwide by leading touring and event sound companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package size.

Fully digitally controlled and with a serial PC communication port as standard, the K3 is also available with either or both KDSP board and KAESOP Ethernet/AES3 interface. Fully equipped with both options, the K3 DSP+AESOP amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities, remotely controllable via Powersoft′s Armonía Pro Audio Suite™ software.
Key applications:

• Small to Medium Scale Touring FOH Systems
• Small Scale Subwoofers
• Stage Monitoring

Application for

• Concert Halls
• Live Clubs
• Corporate Events

Key benefits/features:

• Weight and space saving: unequaled, extremely efficient switch mode PSU and Class D design in only one rack space (1U) and 12kg/26.5lbs
• Power saving: more amp output power from the AC power distro thanks to >90% efficiency, resulting in more overall power from less rack space1)
• Fewer amplifiers for more speakers: designed for, stable and sounding consistently good with 2Ω loads
• Outstanding sonic quality per design, including patented output filters
• Highly integrated: internal state-of-the-art DSP optional
• Versatile: large number of amp/system/venue parameters can be configured, locked, and monitored
• Communicative: serial PC interface on board; Ethernet interface including AES3 over Cat-5e optional (KAESOP) for complete remote monitoring and control

All features:

• Compact size and Light weight - all models only 1 RU and 12 kg (26 pounds) for easier racking and shipping
• Powersoft legendary universal switch mode power supply up to 300VAC tolerant , compact, high performance
• Power Factor Correction (PFC), reducing AC mains current draw and increasing voltage operating range (universal power supply)
• Detachable AC mains cord
• Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
• Fixed frequency switch mode output stage for highest grade audio accuracy
• Patented output filter with ripple cancellation network
• Front panel LCD interactive display and LED level meters
• Lockable user menu for setting max output voltage, max mains current draw, digital gain/attenuation control, defeatable gate selection per channel, limiter and real time
• Gain/sensitivity user selection capability (Digital gain attenuator)
• Built-in defeatable Clip limiters for each channel
• Monitoring of: load impedance, AC mains voltage and current, output voltage, internal temperature
• Downloadable log file of all functional fault events with time related trace
• Hardware monitor available for fast local diagnostics
• Built-in Remote Control (RS 485 interface) for full diagnostic, operational setting and system monitoring, Armonía compatible
• Temperature controlled continuous variable speed fan, front to rear airflow
• Smart card reader for preset load/save, firmware upgrades and step-up power to K8/K10 (or K3)
• Power on/off muting: for 4s at power on, and upon power off amplifiers outputs are muted
• Neutrik® XLR/1/4" Combo balanced input (link out on K2/K3) and Speakon® output connectors
• Fully protected circuitry design including DC, infrasonic, high frequency, thermal overload and short circuit
• Comprehensive protection circuitry:
• DC protection: protects against infrasonic signals
• VHF protection: protects the loudspeakers against strong very high frequency non-musical signals above the audible range.
• Thermal protection: prevents the amplifier from being overheated. The protection indicators on the front panel are switched on, as a warning, before the protection process is initiated.
• AC protection: shuts down the power supply if the line voltage is outside the operating voltage.
• Clip limiter: prevents severely clipped waveforms from reaching the loudspeakers, whilst maintaining full peak power.
• Full four years warranty

Turbosound TMS Low Frequency Speaker

Price List GBP 871 / Piece
Turbosound TMS Low Frequency Speaker
The TMS-Low is a compact horn-loaded subwoofer enclosure consisting of an 18" low frequency driver.
It is designed for use with the matching TMS-High mid/high enclosure, making a high output (129dB peak) full range portable sound reinforcement system. The birch plywood cabinet is shaped to allow the TMS-High enclosure to be stowed inside the horn flare when transporting the system in and out of a venue. It is fitted with heavy duty wheels and includes an integral pole mount socket to allow the mid/high to be mounted at the correct height

Feature:

• 18" low frequency driver
• Neodymium drive unit
• Small footprint
• Integral pole mount
• Part of the TMS system

Specification:

Net Weight	40kg (88lbs)
Dimensions	835mm x 576mm x 576mm (32.9" x 22.7" x 22.7")
Components	1 x 18" (457mm) LF driver
Frequency Response	43Hz - 200Hz ±3dB
Power Handling	500 watts r.m.s., 1000 watts program
Sensitivity	101dB 1 watt @ 1 metre
Maximum SPL	128dB continuous, 134dB peak
Impedance	8 ohms
Construction	15mm (5/8") birch plywood, finished in black textured paint. Two recessed carrying handles.
Connectors	2 x Speakon NL4 wired: pin1+: LF positive, pin1-: LF negative, pin2+: mid/high positive, pin2- mid/high negative
Spares & Accessories	LS-1817 18" (457mm) LF driver RC-1817 LF recone kit

Turbosound TMS High Passive Two Way

Price List GBP 871 / Piece
Turbosound TMS High Passive Two Way
The TMS-High is a passive 2-way mid-high loudspeaker consisting of a horn-loaded 10" MF driver and a 1" HF compression driver in a compact enclosure.

It is designed to be pole mounted with the matching 18" TMS-Low subwoofer, making a high output (129dB peak) full range portable sound reinforcement system. It is equipped with two flush grab handles, and Speakon NL4 connectors are provided on the rear panel for input and parallel link connections. M10 rigging points are provided for use with an optional yoke or for permanent installations using M10 shoulder eyebolts.

Features:

• Two-way passive mid/high
• Compact enclosure
• Line source Polyhorn mid-range
• Speakon NL4 connectors
• Integral pole mount

Specification:

Net Weight	20kg (44lbs)
Dimensions	480mm x 452mm x 419mm (18.9" x 17.8" x 16.5")
Components	1 x 10" (254mm) MF driver, 1 x 1" (25mm) HF driver
Frequency Response	180Hz - 20kHz ±3dB
Dispersion	90°H x 40°V @ -6dB points
Power Handling	200 watts r.m.s., 400 watts program
Sensitivity	100dB 1 watt @ 1 metre
Maximum SPL	123dB continuous, 129dB peak
Crossover	4kHz
Construction	15mm (5/8") birch plywood, finished in black textured paint. Two recessed carrying handles
Grille	Powder coated black perforated steel mesh
Connectors	2 x Speakon NL4 wired: pin1+: LF positive, pin1-: LF negative, pin2+: mid/high positive, pin2- mid/high negative
Spares & Accessories	LS-1028 10" (254mm) LF driver RC-1028 Recone kit CD-121 1" (25mm) HF compression driver RD-121 HF diaphragm PA-90 90cm speaker pole PA-100 100cm speaker pole

Turbosound Impact 55T Passive 2 Way

Price List GBP 129 / Piece
Turbosound Impact 55T Passive 2 Way
The Impact 55T is a compact passive two-way loudspeaker consisting of a 5" low frequency drive unit matched to a 1" neodymium ferrofluid cooled HF tweeter with an internal passive crossover network and including an internal line transformer.

The Impact 55T will provide high quality sound reproduction from an unobtrusive cabinet and is available in black or white, designed to blend effectively into any decor. It is supplied with a multi-tapped internal line transformer for use in 70 volt line and 100 volt line distributed systems, and also includes a low impedance setting. The low frequency range of the Impact 55T can easily be extended with the TSB-110 subwoofer.

The Impact 55T is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified process. The cabinet also provides M6 fixings for use with CB-10 wall brackets, WB-10 ceiling brackets and OmniMount™ brackets. A 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.

Features:

• Passive two-way design
• Moulded enclosure
• Wide dispersion
• Integral line transformer
• Multiple voltage taps
• M6 rigging points
• OmniMount™ compatible
• 3/8" mic stand fitting

Specification:

Net Weight	3.5kg (7.7lbs)
Dimensions	300mm x 164mm x 158mm (11.8" x 6.5" x 6.2")
Components	1 x 5" (127mm) LF driver, 1 x 1" (25mm) ferrofluid-cooled neodymium HF tweeter
Frequency Response	89Hz - 20kHz ±3dB, 64Hz - 20kHz ±10dB
Dispersion	100°H x 70°V @ -6dB points
Power Handling	80 watts continuous, 160 watts program
Sensitivity	90dB SPL, 1 watt @ 1metre
Maximum SPL	109dB continuous, 115dB peak
Impedance	16 ohms
Crossover	Internal passive crossover at 2.5kHz, 12dB/octave
Construction	Gas injected, glass-filled moulded ABS enclosure
Grille	Powder-coated galvanised perforated steel
Connectors	Colour coded binding posts
Flying Hardware	(2) M6 fixing points for WB-5 wall bracket (supplied). Compatible with WB-10 wall brackets, CB-10 ceiling brackets, and OmniMount™ brackets
Options	Available colours: White, Black
Spares & Accessories	LS-50 LF driver TW-52 HF tweeter MG-IMP55 Metal grille WB-5 Adjustable wall bracket WB-10 Wall bracket CB-10 Ceiling bracket

Turbosound Impact 65T Passive Two Way

Price List GBP 214 / Piece
Turbosound Impact 65T Passive Two Way
The Impact 65T is a passive two-way loudspeaker using two 5" low frequency drive units matched to two 1" neodymium ferrofluid cooled HF tweeters with an internal passive crossover network and including an internal line transformer.

The Impact 65T will provide high quality sound reproduction from an unobtrusive cabinet, available in black or white and designed to blend effectively into any decor. It is supplied with a multi-tapped internal line transformer for use in 70 volt line and 100 volt line distributed systems, and includes a low impedance setting. The low frequency range of the Impact 65T can easily be extended with the TSB-110.

The Impact 65T is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly. This facility allows the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified and considerably faster process. The cabinet also provides M6 fixings for use with CB-10 wall brackets, WB-10 ceiling brackets and OmniMount™ brackets. A 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.
Feature:

• Passive two-way design
• Moulded enclosure
• Integral line transformer
• Multiple voltage taps
• Low impedance setting

Specification:

Net Weight	5kg (11lbs)
Dimensions	450mm x 164mm x 158mm (17.7" x 6.5" x 6.2")
Components	2 x 5" (127mm) LF drivers, 2 x 1" (25mm) ferrofluid-cooled neodymium HF tweeters
Frequency Response	74Hz - 18kHz ±3dB, 43Hz - 20kHz ±10dB
Dispersion	100°H x 70°V @ -6dB points
Power Handling	120 watts continuous, 240 watts program
Sensitivity	90dB SPL, 1 watt @ 1metre
Maximum SPL	111dB continuous, 117dB peak
Impedance	8 ohms
Crossover	Internal passive crossover at 4.5kHz, 12dB/octave
Construction	Gas injected, glass-filled moulded ABS enclosure
Grille	Powder-coated galvanised perforated steel
Connectors	Colour coded binding posts
Flying Hardware	(2) M6 fixing points for WB-5 wall bracket (supplied). Compatible with WB-10 wall brackets, CB-10 ceiling brackets, and OmniMount™ brackets
Options	Available colours: White, Black
Spares & Accessories	LS-51 LF driver TW-52 HF tweeter MG-IMP65 Metal grille WB-5 Adjustable wall bracket WB-10 Wall bracket CB-10 Ceiling bracket
