YAMAHA AD8HR AD Converter With Remote PreAmp

Price List Rp.40.100.000

YAMAHA AD8HR AD Converter With Remote PreAmp
Remotely Controllable 8-channel 24-bit Head Amp and AD Converter
With the AD8HR Yamaha introduces a new generation of 8-channel remote microphone preamp/AD converters combining unparalleled sound quality with a host of innovative functions in a compact 1U rack size unit.The AD8HR can be used with Yamaha digital consoles such as the PM5D, DM2000 and DM1000, providing high-quality remote microphone preamps with analog circuitry derived from the extraordinary PM5000 analog console. The AD8HRprovides digital audio output via high-performance 24-bit/96-kHz AD converters, and simple digital connection allows gain, filter, and phantom power control right from the console!

Stunning Sound Quality with Sampling Rates Up To 96 kHz
Head amplifiers play a vital role in determining the final sound quality of any analog-to-digital converter, and that's why we chose the circuitry used in our state-of-the-art PM5000 analog mixing console for the AD8HR's eight microphone preamplifiers. Only the finest parts available have been selected and implemented to achieve immaculate reproduction backed up by 96-kHz digital processing. Sound quality depends on more than just specifications, so rigorous and impartial listening tests were carried out with the participation of leading professionals in order to perfect the design and ensure that only the input signal, with all of its most delicate nuances intact, will appear at the output.

Remote Control Facilitates Integration with Digital Mixers
The gain of the AD8HR's microphone preamplifiers can be remotely controlled in steps of 1 dB from digital mixing consoles such as the DM2000 and DM1000*. Each channel also includes a high-pass filter with remotely controllable cutoff frequency, and a phantom power supply that can be switched on or off in the same way. This makes the AD8HR an ideal choice for use as a remote stage box. In addition to the many practical advantages that this offers, digital connection between the AD8HR and digital mixing console via an AES/EBU cable reduces the need for analog wiring to an absolute minimum, keeping sound quality deterioration in check and simplifying wiring layout. Up to 255 AD8HRs can be daisy-chained for massive input capacity.
* The DM2000 and DM1000 must be upgraded to version 2 in order to make full use of these functions. Version 1.xx of the DM2000 or DM1000 software provides support for gain control in 6 dB steps.

Eight XLR Connectors and D-Sub AES/EBU Terminals in a Compact 1U Design
Packaged in a space-saving 1U unit, the AD8HR boasts a full range of analog and digital I/O connections. And with integrated high-pass filters and phantom power supplies this AD converter features all the functionality required for effective, flexible live mixing. The front panel and controls have been designed for speedy operation and instant identification that can be critical in live situations. Each of the rear panel's eight inputs features an XLR connector, and a pair of D-sub 25-pin AES/EBU digital output terminals are standard. BNC terminals provide word clock input and output. The AD8HR covers every base in terms of digital connectivity. Input signals can be separated into two parallel output lines using the two D-sub 25-pin AES/EBU digital output terminals, allowing one to be used for FOH and the other for monitoring or recording. In addition, remote control can be implemented via RS422 or switchable PC/RS422 nine-pin terminals.

Specification:

General specifications		AD8HR
Internal processing		32bit
Sampling frequency rate	Internal	"44.1kHz, 48kHz, 88.2kHz, 96kHz "
	External	44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
Total harmonic distortion		Less than 0.01% (20Hz-40kHz)
Frequency response		0, +1, -1.5dB 20Hz-40kHz
Dynamic range		AD+DA: 110dB (Use DA824 for output)
Hum & noise level	Equivalent input noise	-128dBu (Use DA824 for output)
Crosstalk		-80dBu
Power requirements		Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power consumption		35 W
Dimensions	W	480mm; 18-7/8in
	H	45mm; 1-3/4in (1U)
	D	383.5mm; 15-1/8
Net weight		5kg; 11lbs
Accessories		Owner's manual, AC Cable, 4x Rubber Foot

Roland TD-30KV V-Pro® Series Digital Drums

Price List Rp.83.250.000
Roland TD-30KV V-Pro® Series Digital Drums
The Dawn of SuperNATURAL-Powered V-Drums… Play, Feel, Believe!
For over a decade, Roland’s revolutionary V-Drums® have lead the industry in expressive sound quality and incredible playability. With the introduction of the SuperNATURAL®-powered TD-30KV V-Pro Series, the electronic drum set reaches a new pinnacle in drumming performance. SuperNATURAL sounds with Behavior Modeling, along with advanced sensing technology, provides a new level of expressive sound quality and playability, resulting in an instrument that reacts and responds to all the subtleties, nuances, and dynamics of a drummer’s technique. In addition, USB audio-playback functionality has been added to expand the performance palette. For the stage or for professional recording, the new V-Pro is truly a complete and natural drumming experience.

• Flagship V-Drums® with advanced sensing technology and SuperNATURAL® sounds
• Expressive and accurate playability produced by Behavior Modeling
• Professional V-Edit mode for customizing sounds
• Dedicated “Ambience” fader with new room-ambience and overhead-mic simulation
• Solid stage set with metallic gray and black-chrome color finish
• New V-Hi-Hat (VH-13) with improved motion sensor for natural hi-hat response
• New V-Pads (PD-128S/-128/-108) with improved rim sensor for accurate rim-shot sensing
• New V-Cymbals (CY-14C crash, CY-15R ride) with natural feel and accurate triggering
• USB memory port for data backup and audio playback (WAV/MP3)
• Separate USB-MIDI port for computer connectivity

Snare drum stand, hi-hat stand and kick pedal not included and shown only for photography purposes. Connection cables are partially hidden for photography purposes.

TD-30 Drum Sound Module With SuperNATURAL® Sounds
Powered by SuperNATURAL sounds and Behavior Modeling, the TD-30KV offers superior sound quality and natural response. From rim shots, rolls, flams, even ghost notes on the snare to dramatic crash hits and sustained cymbal swells, every nuance is accurate and smooth. For spatial depth, a dedicated Ambience fader gives you immediate control over lush room ambience and overhead-microphone simulation.

New V-PADS™ With Advanced Rim Sensor
A new rim sensor has been specifically developed for the TD-30KV’s mesh head pads in conjunction with the TD-30 Drum Sound Module to accurately detect dynamics and rim-shot depth. The PD-128S-BC is snare-stand mountable, while the tom pads can be dual-mounted for setup versatility.

Solid, Stylish KickPAD
The KD-140-BC 14-inch V-Kick provides stable performance and accurate triggering with a natural, acoustic-like kick feel. Drummers will feel the difference the moment they sink their pedal into this top-of-the-line pad.
*Kick pedal not included.

V-HI-HAT® With Improved Motion Sensor For Natural Hi-Hat Response
The superior design of V-Hi-Hat has taken into account not only the shape of the hi-hat, but also the bounce of the stick and even the movement caused by playing, making it possible to play with the same feel as an acoustic hi-hat. The new VH-13-MG features an improved motion sensor and advanced triggering technology for natural response with smoother open-to-closed control. You can alter the closed tone by pressing harder on the pedal after it’s closed. You can also play foot splashes.
*Hi-hat stand not included.

NEW V-CYMBALS® With Natural Feel And accurate Triggering
Roland’s unique V-Cymbals provide a natural swing feel with accurate triggering and sensitivity across the entire cymbal surface. The new CY-14C-MG Crash and CY-15R-MG Ride are offered in an eye-catching metallic-gray surface to cosmetically match the TD-30KV’s new V-Hi-Hat, V-Pads, and chrome-finished drum stand.

Flagship Drum Stand For Professional Stage Use
The MDS-25 chrome-finished drum rack not only looks great, it also provides rock-solid stability with its advanced weight-balanced design. The newly improved mounts for cymbals and toms provide a highly flexible setup. The rubber protective sleeve shields the cables from damage while the new clear-cabling system complements the overall design.

Custom Covering System For Changing Shell Color
The new V-Pads and V-Kick feature a new exchangeable black-chrome color shell wrap. The TD-30KV’s V-Pad lugs are separated from the shell, which allows you to replace the shell wrap with the ease of replacing a drumhead.
*Optional Shell-Wrap Package: CV-20KX-BU (Blue), CV-20KX-RD (Red)

Specification:

KIT CONFIGURATION

Drum Sound Module

TD-30 x 1

V-Kick

KD-140-BC x 1

V-Pad (Snare)

PD-128S-BC x 1

V-Pad (TOM1, TOM2)

PD-108-BC x 2

V-Pad (TOM3, TOM4)

PD-128-BC x 2

V-Hi-Hat

VH-13-MG x 1

V-Cymbal Crash

CY-14C-MG x 2

V-Cymbal Ride

CY-15R-MG x 1

Drum Stand

MDS-25 x 1 (included in U.S.)

OTHER

Extra Trigger Input Jack

4 (AUX1 - AUX4)

Accessories

Setup Guide

Options (sold separately)

Cymbal Mount: MDY Series, Pad Mount: MDH Series, Personal Drum Monitor: PM-30/PM-10, V-Drums Accessory Package: DAP-3, V-Drums Mat: TDM-20, Shell-Wrap Package: CV-20KX-BU (Blue)/CV-20KX-RD (Red)

SIZE AND WEIGHT

Width (W)

1,600 mm
63 inches

Depth (D)

1,200 mm
47-1/4 inches

Height (H)

1,250 mm
49-1/4 inches

Weight

57 kg
125 lbs. 11 oz.

* Weight including MDS-25 Stand

* Kick Pedal, Snare Stand, Hi-Hat Stand, and Drum Throne are not included.

All specifications and appearances are subject to change.

BOSS TE-2 Tera Echo

Price List Rp.1.700.000
BOSS TE-2 Tera Echo
Make Your Playing Soar with Majestic Ambience
Powered by Multi-Dimensional Processing technology (MDP), the TE-2 Tera Echo produces a dynamic new stereo ambience effect that goes far beyond traditional delay and reverb.

• Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
• Rich, spacious echo and ambience effects
• Dramatically enhances the direct tone, but never overwhelms it
• Freeze function holds the ambient sound for lead backing and sound effects
• Ultra-responsive to volume changes and playing dynamics
• Wide range of sound adjustment with simple controls
• Mono/stereo input and output

Multi-Dimensional Processing for Superior Tone
Roland’s innovative Multi-Dimensional Processing (MDP) analyzes audio signals in many dimensions and applies ideal effects to each. By giving different dynamic changes relative to the input signal in real time, MDP can create bold, all-new sounds with a previously unattainable range of expression.

TE-2: Inspirational Echo
Thanks to MDP, the TE-2 delivers an amazing new ambience effect that satisfies and inspires. Complex internal processing produces an incredibly deep and spacious sound, dramatically enhancing the straight guitar tone without overwhelming it. Through the TE-2’s simple, familiar stompbox controls and incredible sensitivity to your playing dynamics, an extremely wide range of sounds can be achieved. And with the expressive Freeze function, you can hold the current effect sound to create rich soundscapes for lead playing and sonic exploration.

The 100th BOSS Compact Series Model!
The TE-2 Tera Echo represents a milestone as the 100th model in the long history of the BOSS compact series. Starting with the release of the OD-1 Overdrive in 1977, BOSS’ legendary stompboxes have been integral tools of artistic expression for millions of players around the world. Fueled by a spirit of dedication and innovation that began nearly four decades ago, the TE-2 carries on the BOSS legacy of bringing inspiring, leading-edge technologies to musicians everywhere.

Specification

Nominal Input Level

20 dBu

Input Impedance

1 M ohm

Nominal Output Level

20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch
E. LEVEL knob
TONE knob
FEEDBACK knob
S-TIME (Spread Time) knob

Indicator

CHECK indicator (Used for indication of HOLD, and to check battery)

Connectors

INPUT-A (MONO) jack
INPUT-B jack
OUTPUT-A (MONO) jack
OUTPUT-B jack
AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)

Current Draw

53 mA
* Expected battery life under continuous use
Alkaline:Approx. 6 hours
Carbon: Approx. 1.5 hours
These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

Size and Weight (including battery )

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-6/16 inches

Weight

435 g
0 lbs. 16 oz.

* 0 dBu = 0.775 Vrms

Roland CUBE Lite MONITOR Monitor Amplifier

Price List Rp.1.675.000
Roland CUBE Lite MONITOR Monitor Amplifier
Sing, Play, and Practice with Your Favorite iOS Devices
Featuring mic and instrument inputs, iOS interfacing, and a quality 2.1 Channel audio system, the CUBE Lite MONITOR is perfect for enjoying music at home with your iPhone, iPad, or iPod touch. Connect your iOS device to the i-CUBE LINK jack, and then launch the free CUBE JAM app to play, record, and take advantage of great practice tools like speed/pitch adjustment, Center Cancel for minus-one tracks, and more. Stereo speakers and an integrated subwoofer provide rich sound that fills the room, while onboard effects offer pleasing ambience for singing and playing instruments. Attractive and versatile, the CUBE Lite MONITOR is ideal for music practice, entertainment, and karaoke fun.

• Tabletop monitor amplifier with a stylish look for home living spaces
• Great-sounding 2.1 Channel audio system, with stereo speakers and integrated subwoofer
• Stereo 1/4-inch phone jacks for connecting microphone and musical instruments; stereo reverb and echo effects
• i-CUBE LINK jack provides simple audio interfacing with Apple’s iPhone, iPad, and iPod touch
• Free CUBE JAM app for iOS plays songs and minus-one tracks, and offers many features for music practice and learning
• Includes cable for two-way communication (playback and recording) with iOS devices
• Ideal for home use, offices, classrooms, recreation centers, and more
• Attractive white finish

Sing And Play With High Quality Sound
The CUBE Lite MONITOR is equipped with two 1/4-inch inputs for plugging in a mic and mono instrument or one stereo instrument. Easy-to-use reverb and echo effects provide a satisfying ambience for singing and playing. The powerful 2.1 Channel sound system features stereo speakers and an integrated subwoofer, delivering amazingly rich and full sound for a compact monitor. For silent practice, you can plug in headphones to mute the onboard speakers.

Easy IOS Device Integration WithI-CUBE LINK
i-CUBE LINK lets you easily integrate your iPhone, iPad, or iPod touch with the CUBE Lite MONITOR for music practice, song playback, and recording. With a single-cable connection, the CUBE Lite becomes an audio interface for your iOS device, allowing you to play and/or record music with any audio app. Simply use the included cable to connect the iOS device to the i-CUBE LINK jack, and then use the CUBE Lite MONITOR to blend your mic/instrument with the iOS audio. The versatile i-CUBE LINK jack can also be used as a simple stereo input, enabling you to hook up nearly any music player or audio device and play it through the CUBE Lite.

CUBE JAM APP
The free Roland CUBE JAM app turns your iOS device into a powerful tool for audio recording and music practice. Via i-CUBE Link, you can play and sing along with music from CUBE JAM through the CUBE Lite MONITOR, then capture your performance into the app. After you’re done, you can adjust the volume of your performance and backing music independently in CUBE JAM, then export your mix as a 16-bit, 44.1 kHz WAV file to share with friends and family. Also on tap are a number of cool features for music practice and learning songs, including tempo change, pitch adjustment to change the song key to suit your voice, and Center Cancel to create minus-one tracks for karaoke-style singing.

Direct Mode
Normally, recording from the CUBE Lite MONITOR into CUBE JAM or another app captures the sound as you hear it, with the onboard reverb/echo effect applied. Activating the CUBE Lite’s Direct Mode feature lets you capture dry sounds while monitoring with the effect sound. Recording dry tracks in this way gives you the option to experiment with other processing later, using the audio app of your choice. Direct Mode also allows you to use real-time processing in any app, monitoring the live output with the CUBE Lite MONITOR.

Stylish Design For Modern Living Space
With its compact, tabletop design and attractive white finish, the CUBE Lite MONITOR blends in nicely with any living space in your home. In addition to being a great amp for mics and instruments, it also doubles as a high-quality home playback system for your digital music library. Use it in your living room for home entertainment and karaoke parties, your bedroom for music practice, or in your office as a high-quality sound system for your PC.

Specification:

Rated Power Output

10 W (Stereo speakers 3 W x 2 + Subwoofer 4 W)

Nominal Input Level (1 kHz)

[STEREO MODE]
L (MONO), R: -20 dBu
[MIC MODE]
MIC: -40 dBu
LINE: -20 dBu
i-CUBE LINK/STEREO AUX IN: -10 dBu

Speakers

7.5 cm (3 inches) x 3

Controls

POWER switch
Mode switch (STEREO/MIC)
VOLUME knob
LOW knob
MIDDLE knob
HIGH knob
REVERB/ECHO knob

Control (i-CUBE LINK/STEREO AUX IN)

VOLUME knob

Indicator

Mode

Connectors

L (MONO)/MIC jack: 1/4-inch phone type
R/LINE jack: 1/4-inch phone type
i-CUBE LINK/STEREO AUX IN jack: 4-pole miniature phone type
PHONES jack: Stereo miniature phone type
DC IN jack

Power Supply

AC adaptor (DC 5.7 V)

Current Draw

1000 mA

Accessories

Owner's Manual
AC adaptor
Mini cable (4 poles)

Size And Weight (EXCLUDING AC ADAPTOR)

Width

250 mm
9-7/8 inches

Depth

147 mm
5-13/16 inches

Height

135 mm
5-6/16 inches

Weight

1.7 kg
3 lbs. 12 oz.

* 0 dBu = 0.775 Vrms

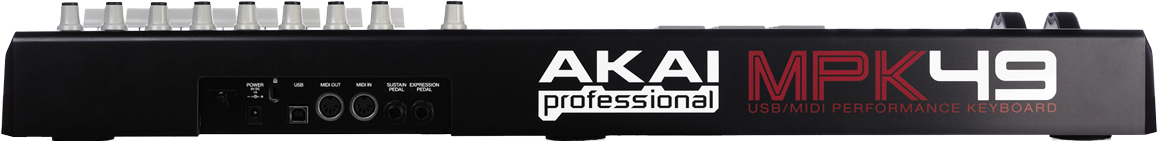

AKAI MPK49 Performance Controller

Price List Rp.4.780.000

AKAI MPK49 Performance Controller

Complete Creativity
Maximize musical ideas on-stage or in the studio with the Akai Professional the MPK49 performance controller. The MPK49 ushers in a new era for USB/MIDI controllers by combining a high-quality 49-key semi-weighted keyboard with aftertouch and 12 genuine MPC drum pads. 48 total pads are accessible via 4 pad banks. The pads feature the heart and soul of hip hop—the MPC Note Repeat and MPC Swing. The MPK49 even has a built-in arpeggiator for creating quick, creative riffs in seconds.

Intricate Control
The MPK49 also features MPC Full Level and 12 Level functions on its pads, and MPC Swing can be applied to both Note Repeat and Arpeggio functions. Tap Tempo and time-division buttons allow for real-time control of Note Repeat and Arpeggio clock speeds. The MPK49 delivers an amazing 76 assignable controls, with assignable inputs that include an expression pedal, footswitch, and pitch bend and modulation wheels. More than just a USB/MIDI controller, the MPK49 captures the soul of your performance.

Avid® Pro Tools® Express Included
Compose, record, edit, and mix using the tools the professionals use. Pro Tools Express starts with 16 simultaneous stereo or mono audio tracks. Add in the popular Boom, Xpand!2, and Structure Free player virtual instruments from AIR Music Technology—all included. Finish off with dozens of high-powered effect plug-ins, including the in-demand AIR effects. Plus, Pro Tools Express offers session file compatibility with the entire Pro Tools family, so you can take your tracks to the finest studios around the world.

Features:

• 49-key, semi-weighted keyboard with aftertouch and full-sized keys
• 8 full-sized, 360 degree rotation pots, each with 3 banks for 24 pots total
• Avid® Pro Tools® Express audio production software included
• 12 genuine MPC pads with velocity and pressure sensitivity
• 8 full-sized sliders with 3 controller banks for each for 24 sliders total
• MPC note repeat and all-new arpeggiator
• 8 assignable backlit switches with 3 controller banks each for 24 switches total
• MMC/MIDI Start Stop transport buttons
• Large, easy-to-read custom LCD display

Specification:

Number of Keys:

49 + 12 x 4 banks of drum pads

Type of action:

Semi-weighted Aftertouch (Channel)
Computer Interface:

USB/MIDI

Displays:

Custom LCD

Number of Independent MIDI Ins/Outs:

1

Programmable Continuous Footpedals:

1

Programmable Footswitches:

1

Programmable controllers:

MMC, MIDI START/STOP, MIDI CC

System Real-Time Controls:

MMC, MIDI START/STOP, MIDI CC

Dimensions:

(WxDxH) 28" x 11.75" x 2.5"

Weight:12.875

System Requirements:

Macintosh:

1.25 GHz G4/G5 or faster (Intel Mac recommended), 1 GB RAM (2 GB recommended), Mac OS X 10.4.11 (10.5 or later recommended)

Windows:

1.5 GHz Pentium 4 or Celeron compatible CPU or faster (multicore CPU recommended), 1 GB RAM (2 GB recommended), Windows 7, Windows Vista or Windows XP, Windows compatible sound card (ASIO driver support recommended), QuickTime recommended
Available USB Port

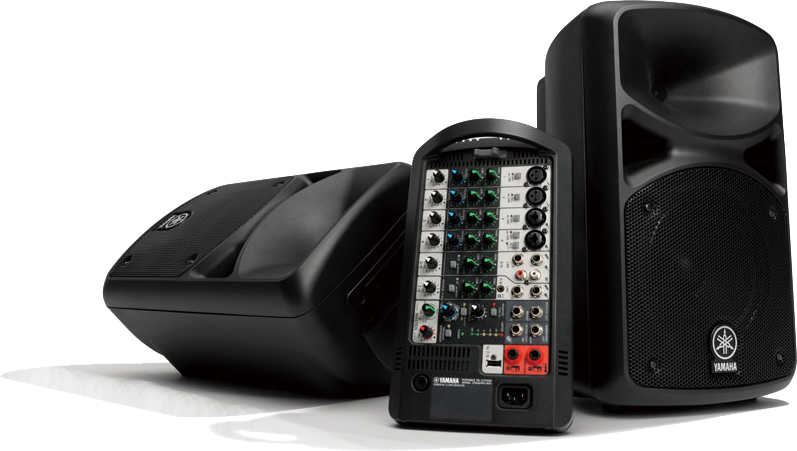

YAMAHA STAGEPAS 600i Portable PA System

Price List Rp.17.500.000
YAMAHA STAGEPAS 600i Portable PA System
All the World's YOUR Stage
The new STAGEPAS 400i and 600i are the successors of the renowned STAGEPAS 300 and 500 which earned worldwide acclaim as compact, yet high-powered, portable PA systems with exceptional sound quality.

The new STAGEPAS feature two sleek, lightweight speakers and a detachable powered mixer, along with one pair of speaker cables and a power cord, giving you a complete, extremely portable sound solution that can be set up quickly and easily in a variety of configurations and environments. By combining new high-efficiency amplifiers, newly designed speakers, and high performance DSP, the new STAGEPAS delivers a significant increase in power output ( 400W for the 400i and 680W for the 600i) as well as substantial improvements in sound quality and reliability. Complementing the boost in performance, the addition of iPod/ iPhone connectivity, SPX digital reverbs, an onboard feedback suppressor and more versatile EQ, has improved functionality and ease of use considerably, allowing STAGEPAS to meet the demands of a much wider range of applications and users.
Features
The Ultimate All-in-One Portable PA System
The new STAGEPAS 400i and 600i are complete, all-in-one sound solutions that are extremely portable and easy to set up, allowing users to instantly add high quality sound reinforcement to virtually any environment.

Ultimate portability
Compact and light enough to carry by hand, STAGEPAS is an all-in-one PA system that you can take literally anywhere. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.

Fast and easy set-up
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.

A PA for any occasion
Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.

New Mixer Features for a Streamlined Set-up
The new STAGEPAS was designed to offer high quality sound, simply and quickly to let you do what you do best. Whether you're giving a speech or playing a gig, STAGEPAS is equipped with intelligent new features that provide simple, intuitive control of optimized settings, making it easy to dial in your perfect sound in a matter of seconds.

iPod/ iPhone digital connection
Enjoy high-quality playback while also charging your iPod/ iPhone so you never have to worry about a drained battery messing with your performance.

SPX digital reverb
One knob gives you access to four different high-quality reverb settings, perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.

1-Knob Master EQ™
This new function gives you instant mastery of your mix, allowing you to match your sound to your surroundings. Simply turn the knob to optimize the EQ for speaking engagements, musical performances, or just to kick in more bass; getting your sound right has never been so easy.

Feedback suppressor
Avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals alike. Usually found only on high-end gear, this intelligent function removes feedback automatically with the push of a button, giving you a clear, professional sound.

A Flexible Mixer with Improved Functionality
Equipped with 10 channels or 8 channels respectively, the STAGEPAS 600i and 400i offer versatile connectivity, comprehensive channel functions, and seamless expandability that meet the growing demands of a wider range of applications and environments.

New STAGEPAS Mixer
- Channel EQ Assign detailed EQ settings to each channel for precise management of your final sound. Great sounding 2-band EQ on the STAGEPAS 400i and more flexible 3-band EQ on the 600i make setup easy and precise. Vocal and guitar performances especially will benefit from newly added mid-range control on 600i. - Hi-Z switch Connect acoustic-electric guitars and basses to enjoy high-quality performance with low distortion. Passive pickup instruments can be connected hassle-free, without a direct box. - Switchable stereo/mono inputs A versatile new feature that allows you to transform each stereo channel input into two independent mono inputs, giving you the flexibility to adapt to the needs of a broad range of performance requirements. - Phantom power Connect condenser microphones directly to STAGEPAS to get the best sound quality possible. Phantom power also means you won't have to worry about DI boxes losing their charge during a performance. - Reverb footswitch For hands-free control of your reverb, connecting an optional footswitch allows you to turn the reverb on and off instantly—perfect for MC-ing events or speaking during solo performances. - Monitor out Expand your front-of-house system or set up a monitoring system by using the STAGEPAS together with other powered speakers such as Yamaha’s DXR lineup. - Subwoofer out Add more bottom end to your system by connecting a powered subwoofer such as the Yamaha DXS Series. Simply plugging in a subwoofer will assign a high-pass filter to the STAGEPAS speakers automatically.

Higher Power Output, Higher Sound Quality, Higher Reliability
By combining new high-efficiency amplifiers, newly designed speakers and high performance DSP, The new STAGEPAS delivers a significant increase in power output, with substantial improvements in sound quality and reliability

More power. More possibilities.
Delivering 680 and 400 watts of power respectively, the STAGEPAS 600i and 400i offer a major boost in performance, allowing you to meet the demands of a wider range of situations.

New speaker design for an increased coverage area
The new speaker design lets you deliver evenly-distributed, high-quality sound to a greater coverage area, so that the entire audience shares the same sonic experience.

Intelligent DSP for peak performance that lasts
STAGEPAS utilizes digital signal processing (DSP) to offer the consistently high-quality, distortion-free sound at any volume level, whether you're giving a business presentation or cutting loose in a club. What’s more, Yamaha’s intelligent DSP incorporates the use of advanced limiter circuits to protect vital STAGEPAS components, ensuring that you get the most out of your gear for years to come.
Specification:

System

System Type	Powered mixer with 2 passive speakers
Maximum SPL (*Maximum SPL)	129dB SPL / speaker
Frequency Range (-10 dB)	55Hz - 20kHz
Power Consumption	35W (Idle), 100W (1/8 Power)
Power Requirements	100V - 240V 50 Hz/60Hz
Dimentions (W x H x D)	Speaker 335x545x319mm, Mixer 348x197x135mm
Net Weight	25.4kg / 56lbs (2 x Speaker 10.8kg + Mixer 3.8kg)

Powered Mixer

Mixer	Mixing channels	10
	Analog inputs	4 mono mic/line + 6 mono / 3 stereo line
	Digital inputs	USB Audio IN: iPod/iPhone exclusive
	Channel EQ	3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz)
	Channel functions	Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
	Digital effects	SPX digital reverb (4 program, parameter control)
	Output processing	Feedback suppressor, 1-Knob Master EQ™
	Phantom power	+30V (CH1, 2)
	Outputs	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
	Control and others	Reverb foot switch
Built-in Amplifiers	Power Rating (Dynamic)	680W (340W + 340W)
	Power Rating (Continuous)	560W (280W + 280W)

Speaker

Type	Two-way bass-relfex speakers
Transducers	LF: 10” (25cm) cone, HF: 1.4” (3.56cm) voice coil compression driver
Coverage Angle (Horizontal x Vertical)	90° x 60°
Floor Monitor Angle	50°
Handle	1 x Top
Pole socket	34.8-35.2mm pole socket with StageLok™

Accessories

Included Accessories	Cover panel, Power cord (2m), 2xSpeaker cables (6m), 12xNon-skid pads
Optional Accessories	Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
