Roland V-8 Eight-Channel Video Mixer with Effects

Price List Rp.28.880.000
Roland V-8 Eight-Channel Video Mixer with Effects
The V-8 is the natural evolution of the legendary V-4 four-channel video mixer
The V-8 offers an expanded visual experience and is the natural evolution of the legendary V-4 Four Channel Video Mixer. The V-8 Eight Channel Video Mixer has all the features of the V-4 but with more channels, two selectable RGB inputs, monitor outputs and additional powerful special effects. It continues the legacy of the V-4's other great features such as ease of use, high-quality digital processing of video, numerous video effects and BPM sync with music. This next generation video mixer expands your visual presentation and performance potential to new applications and dimensions. The V-8 is a part of the Roland SD video mixer line. See the SD Mixer Comparison.

DV quality video outputs with full digital processing
The internal processing of the V-8 is 4:2:2 full-frame digital. More than 500 lines of video resolution ensure very high image quality after digital processing and mixing.

Direct input of computer signal
The V-8 has a built-in scan converter, providing direct input of RGB signals (VGA - UXGA) from two D-Sub terminals on the rear panel. With the selector switch located on the top panel, you can select between two computer sources. Using the luminance key or chroma key, enables logos or text from your computer to be keyed over background video enabling the display of lyrics, bottom thirds, and announcements. Integrating computer graphics and visual applications with video sources has never been easier.


New video filters and numerous transitions
All your favorite effects like colorize and negative are included, along with newly added effects like feedback, afterimage, emboss, find edge and more. Composite two images with Picture-in-Picture and Luminance or Chroma keying. Customize your transitions between the A and B bus with multiple flavors of simple mix, hard or soft wipes, and the all-new stretch and slide transitions.

Independent faders on each bus as well as master output
Faders are independently equipped for both A/B buses allowing you to create a video fade on just one bus or adjust the various video effects parameters. The master fader control is a slider bar enabling quick and intuitive operation while working on the fly.

Next generation V-LINK control enables audio-follow
The V-8 can be remote controlled from the Roland PR series video presenters as well as the V-4. The V-8 can also send remote control signals to the new generation of Roland's digital audio mixer, the M-400 or M-380 V-Mixer . The motorized faders of the M-400 automatically follow the video switching of the V-8. Now you can have your audio sources follow your video sources without the need to manually control two mixers at once.

Concerts or VJ Performances Example
Images can be projected on a large screen located at the back of the stage to create a video performance that’s synchronized to the music. You can mix images from a P-10 Visual Sampler, PR-50 / PR-80 Video Presenters or computer (VJ software) with multiple live images.


Background Video for a Musical Performance Example (Using V-LINK) You can control background video (BGV) simultaneously while playing an instrument.

Specification:

Video Format

Video:

NTSC or PAL (ITU601) PC-RGB: 640 x 480/120 Hz, 800 x 600/120 Hz, 832 x 624/75 Hz,
1024 x 768/80 Hz, 1152 x 864/80 Hz, 1152 x 870/75 Hz,
1280 x 1024/75 Hz, 1600 x 1200/60 Hz (RGB VH: positive/negative logic)
* VESA DMT Version 1.0 Revision 10 conform.
* The refresh rate is the maximum value of each resolution.

Video Sampling Rate

Video:

4:2:2 (Y:B-Y:R-Y), 8-bit, 13.5 MHz

Frame Synchronizer

2 systems

Input Level and Impedance

Video (composite): 1.0 Vp-p, 75 ohms
S-video: <Luminance signal> 1.0 Vp-p, 75 ohms
<Chrominance signal> 0.286 Vp-p,
75 ohms (NTSC) / 0.3 Vp-p,
75 ohms (PAL)
PC-RGB: 0.7 Vp-p, 75 ohms (H, V: 5 V TTL)

Output Level and Impedance

Video (composite): 1.0 Vp-p, 75 ohms
S-video: <Luminance signal> 0 Vp-p, 75 ohms
<Chrominance signal> 0.286 Vp-p,
75 ohms (NTSC) / 0.3 Vp-p,
75 ohms (PAL)

Connectors

Input

Video (composite): BNC type x 7 (Ch 1 - 7)
S-video: 4-pin mini DIN type x 4 (Ch 5 - 8)
PC-RGB: D-SUB 15pin Shrink Type x 2 (Ch8: PC1 / PC2)
* Inputs 5 - 8; however if S-video is simultaneously input to 5-8,
S-video takes priority

Output

Video (composite): BNC type x 2, S-video: 4-pin mini DIN type x 1

Preview Output

Video (composite): BNC type x 1 (OSD Menu)

Monitor Output

Video (composite): BNC type x 8 (Ch 1 - 8)

Remote Control Interfaces

MIDI IN: 5-pin DIN type x 1,
MIDI OUT/THRU: 5-pin DIN type x 1

Transition effects (more than 200 types)

Mix (Dissolve, Non-Additive Mix : NAM, Full-Additive Mix : FAM),
Wipe (Hard edge wipe, Soft edge wipe),
Key, Slide, Stretch, User Transition

Video effects

Still, Strobe, Afterimage, Feedback, Shake, Negative, Colorize,
Find Edge, Silhouette, Mono Color, Emboss, Posterize, Color Pass,
Luminance key, Chroma key, Flip, Multi, Mirror, Picture-in-picture

Power Supply

DC 9 V (AC Adaptor: Roland PSB-1U)

Current Draw

2 A (Preliminary, AC Adaptor PSB-1U 0.4A)

Accessories

AC Adaptor, Power Cord, BNC to RCA video adapter x 4,
mount screw for Video fader x 4, Owner's Manual

Options

Cross Fader: V-4CF

Size and Weight

Dimensions

238 (W) x 315 (D) x 134 (H) mm
(9-3/8 (W) x 12-7/16 (D) x 5-5/16 (H) inches)

Weight

3.2 kg (7 lbs 1 oz)

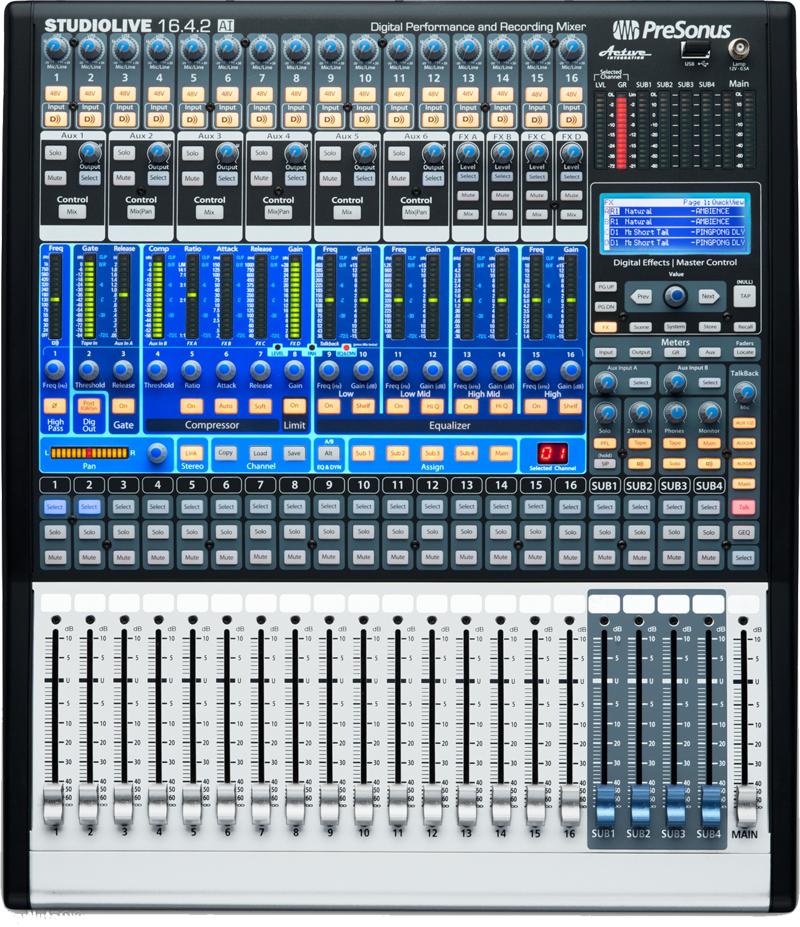

Presonus StudioLive SL16.4.2Ai



Price List Rp.32.418.000
Presonus StudioLive SL16.4.2Ai
Audio engineers sure are a demanding bunch. We want our mixers to be feature-filled, yet easy to use; expandable, yet compact; powerful, yet affordable. And naturally, we want the convenience of digital with the warmth of analog. The PreSonus StudioLive 16.4.2AI digital mixer meets the most discerning engineer's demands (and budget) with clear, warm mic preamps, an impressive array of top-notch digital effects, and a 32x18 FireWire I/O -- making the 16-channel StudioLive a formidable mixing console, whether in the recording studio or on the road.

Plenty Of Routing
Sixteen class-A, high-headroom XMAX preamps feed sixteen input channels for plenty of mixing flexibility. Full band setups with multiple singers are no problem with the StudioLive 16.4.2. To make mixing on the fly easier, assign your inputs to one of four subgroups to get single-fader control over all the drum mics, or all the backup singers, for example.

Additionally, use 6 external auxiliary outputs to send discrete monitor mixes to different areas of the stage, or route them to your outboard effects rack. There's even a complete talkback section (with its own dedicated mic input) for easy communication with performers, whether live or in the studio. Need more than sixteen input channels? Simply daisy-chain a second StudioLive unit and get perfectly synced 32-channel mixing, thanks to the board's FireWire capabilities.

Leave Your Outboard Gear At Home
Two Fat Channel FX processors and four 32-bit effects processors are what make the StudioLive such a powerful -- and self-contained -- mixing solution. The intuitive Fat Channel design puts high-precision EQ, compression, gating and limiting on every channel. Simply press the select button above a channel's fader, and the Fat Channel display is populated with that input's settings, all laid out graphically before you. You'll be able to quickly and confidently make equalization and compression adjustments, and because all this processing is done internally, you don't have to rely on any external compressors, gates, or noise suppressors.

Need a great snare drum sound fast? Easily pull up and tweak the onboard presets -- or save, copy, and paste your own settings. In addition to the Fat Channel processors on each channel, there's a full complement of aux-send effects, including studio-quality reverbs, echos, delays, choruses, and more, with the same 32-bit processing.

The StudioLive 16.4.2 even sports a dedicated tap-tempo button for using time-based effects in live performances. You can even store and recall favorite effects "scenes" for each tune you do live. Now you can rock the same vocal delay live that worked so well in the studio. The PreSonus StudioLive 16.4.2AI could be the next "touring member" of your band.


32x18 FireWire I/O -- Capture Your Mixes
PreSonus has outfitted the StudioLive with impressive recording tools for both live and studio situations -- just like the name says. Hook the unit up to your Mac or PC and you get 32x18 audio recording over FireWire. Every input channel, every aux, and every subgroup can be routed to the FireWire inputs for impressive tracking flexibility. Best of all, the mixer ships with both Studio One Artist and Capture 2, two different live recording softwares.

Connect the FireWire cable, load up the software on your computer, arm your tracks and hit record...it's that easy. Of course, you can also use it with all the major multitrack recording software, like Pro Tools, Cubase, Nuendo, Logic, etc. And for studio situations, you can add multiple channels by connecting additional FireWire gear for virtually limitless expandability. You can even use the StudioLive 16.4.2AI as a tape return mixer to add true analog summing to your digital sessions.

A digital mixer with onboard effects is a the perfect solution for gigging bands that want to record in their rehearsal studio. And if you're a live venue that's looking to offer recording capabilities to your artists, look no further. The powerful, affordable PreSonus StudioLive 16.4.2AI 16-Channel digital mixer/audio interface has arrived.
Features:

• 16 mic/line inputs have high-headroom class-A XMAX preamplifiers with 80 dB of mic gain and +48V phantom power, each on their own channel strip with 100mm faders and access to Fat Channel functions
• 4 subgroup buses, stereo/mono main outs, and 6 aux mixes with access to Fat Channel functions
• Fat Channel functions include pan, stereo link, phase reverse, high-pass filter, 4-band semi-parametric EQ, gate, compressor, limiter, and output assign - with 50 Fat Channel factory presets for drums, bass, guitars, keyboards and vocals
• Two FireWire ports; 32-in/18-out FireWire digital recording interface (32-bit/44.1 kHz and 48 kHz) with bundled Capture 2 recording software and Studio One Artist Digital Audio Workstation software for Mac and PC -- or record to any DAW with the FireWire interface
• High-definition analog-to-digital converters with 118 dB dynamic range
• Unlimited-headroom, 32-bit floating point digital mixing and effects processing
• Lighted Solo and Mute buttons and 15-LED ladder metering plus clip LED
• Talkback system with XLR input, output select and Talk button
• Rugged steel chassis; military-grade, quick-touch buttons

Virtual StudioLive (Mac/Win) and StudioLive Remote (iPad)

PreSonus Virtual StudioLive-AI software for Mac and Windows provides bidirectional control of the StudioLive digital mixer. Now you can see and control the most-used mixer parameters onscreen, including channel, subgroup, aux send, and main levels, as well as Fat Channel, effects, and graphic EQ settings.

Control the mixer with a mouse or watch VSL update when you adjust the hardware. Drag Fat Channel presets onto all 16 channels in seconds. Mute or solo every channel with a sweep of the mouse. Apply a Scene to the whole mixer just by dragging it on VSL from a list you see at all times. Collect and trade Scenes with other StudioLive users.

To top it off, you can control VSL - and therefore, your StudioLive mixer - from an Apple iPad. With PreSonus StudioLive Remote for iPad (free from the Apple App Store), you can walk around the venue and tweak the mix, in real time, from any location, fixing monitor mixes from the stage and eliminating sonic problems on the spot.

• Easy drag-and-drop workflow
• Drag presets directly to channels
• Drag parts of presets directly to components in the Fat Channel
• Adjust the Fat Channel gate, compressor, and EQ plus the graphic EQ and effects
• Quickly drop entire Scenes to the mixer to instantly load all channel, effects, and graphic EQ settings
• Load effects quickly by simply dragging presets into the GUI
• Use the mouse to quickly assign channels to multiple buses, mute, solo, etc.
• Store and organize presets on your computer, then transfer them to your mixer for that night's gig
• Create presets on the road, store them to the mixer, then drag them to your preset pool the next time you're connected to the computer
• Reorder presets in mixer memory and in the software to best fit your workflow for each gig
• Share presets with friends; drag presets out of the browser and email, IM, or disk-swap presets with other StudioLive owners
• See all of the most-used parameters on the mixer at once
• See the state of all Fat Channel settings at once
• See all aux mixes at once
• See the current effects and other parameter settings
• View and graphically edit all parametric EQ and compression curves
• View and graphically edit all graphic equalizer settings
• Do time-stamped backups of the entire mixer
• Remote control the mixer from an iPad using StudioLive Remote software.

Q-Mix Wireless Aux-Mix Control Software for iPhone and iPod touch

With QMix, you can enjoy wireless remote control of any PreSonus StudioLive mixer's aux sends from up to ten Apple iPhones or iPod Touches. Let performers create their monitor mixes from individual iPhones. With the Wheel of Me, you can select multiple "Me" channels and control their levels simultaneously. Requires a Mac or PC running PreSonus Virtual StudioLive.

• Runs on an Apple iPhone or iPod touch with iOS 4 or higher
• Provides wireless control over aux mixes in Virtual StudioLive and hence, over aux mixes in any StudioLive-series digital mixer
• Portrait view shows Wheel of Me, where you can select multiple "Me" channels and control their levels simultaneously
• Landscape view provides control of all aux-send levels and panning (for linked auxes)
• Aux mixes can be named (up to 10 characters)
• Control the auxes on any StudioLive mixer on the wireless network from one iPhone or iPod touch
• Multiple iPhones and iPod touches can control the same StudioLive
• Set permissions in VSL so each iPhone and iPod touch can control only one specific aux mix
• Free from the Apple App Store

Roland VR-50HD Multi-Format AV Mixer

Price List Rp.98.000.000
Roland VR-50HD Multi-Format AV Mixer
An all-in-one HD Multi-Format AV Mixer with built-in USB 3.0 for Web Streaming and Recording
A complete portable HD studio in a single unit. Single-person operation of sound and picture using faders, buttons and touch screen. The Roland VR-50HD all-in-one AV mixer beautifully integrates an audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming into a stand-alone device. This single unit delivers functionality that until now required a number of peripheral devices to accomplish. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, trainings, or any other live event. See the current VR-50HD Streaming Software Compatibility list for more information on streaming software compatibility.
Main Features

• 12 input, 4-Channel Video plus still channel Multi-Format Switcher
• Supports 3G/HD/SD SDI, HDMI, RGB/Component, and Composite Video Inputs Up to 1080p (3G SDI)
• Embedding of audio with delay settings
• 12-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from SDI and HDMI inputs
• 4 Layer, Compositing of PinP, PinP/KEY, and STILL
• Built-In Preview Touch Monitor (7 inch Graphic color LCD 800 x 480 dots)
• External Multi-View Output through HDMI
• HDCP Support
• USB3.0 Video/Audio Output for web streaming and recording up to 1080p (uncompressed)

Application example: AV Studio and Live Streaming
Until now, achieving a high-definition AV studio with live streaming required a large amount of equipment: video switchers, audio mixers, converters for adjusting the input signals of devices with different resolutions, LCD monitors, and so on.

The VR-50HD is an all-in-one device − a complete high-definition production center in a single unit.
You can connect cameras, computers, Blu-ray players, DVD players, microphones, iPads, and more for use as input devices, without having to worry about whether the equipment is analog or digital or what formats they output. In addition to HD-SDI and HDMI output for HD recording equipment, the unit also provides USB 3.0 and 2.0 output. This enables the ability to connect a computer and perform live streaming and recording. All digital video output connectors include embedded audio as well.

Application example: Presentations and Live Events
You never know what kind of material on what devices/media will be brought to a presentation or live event. The notebook computers that presenters bring can have a variety of connectors from VGA to DVI, HDMI, and others. Resolutions are also diverse, and quick accommodation is not always possible. Use of commercially available Blu-ray discs and DVDs can also run into the problem of playback being restricted by HDCP.

The VR-50HD resolves such issues without the need for any additional equipment.
Even when input devices use different resolutions, internal scalers perform automatic conversion to the optimal resolution. The built-in scalers also let you expand and reduce video and still images however you like for perfect framing. The VR-50HD features an HDCP mode that lets you input and switch commercial digital video from sources such as Blu-ray discs or game consoles encoded using HDCP digital copyright management technology. This is a multi-format AV mixer that you can count on to handle whatever material turns up on-site.
*In HDCP mode, only HDMI output can be used. Use of SDI, RGB/Component, Composite, analog audio output is not possible.
*Commercial use of content requires the permission of the copyright-holder.
Main features
12 input, 4-Channel Multi-format Video Switcher
At total of 12 HDMI, 3G/HD/SD-SDI/SDI, RGB/COMPONENT, and composite inputs are provided. In addition to professional HD cameras, you can connect equipment that ranges from computers and Blu-ray and DVD players to video cameras using composite output. The unit features multi-format specifications that allows you to never have to worry about differences in resolution among input devices. *6 channel switching is possible when not using compositing features such as PinP and Key.

Built-In Preview Touch Monitor
The VR-50HD is equipped with a large 7-inch touch-panel LCD screen that enables truly intuitive operation. Using the seven-way multi-viewer to display four input pictures, composited material, and program out simultaneously eliminates the need for external monitors. You can also switch to quad multi-view. Advanced settings for picture and sound can also be made using the touch panel, so you can get started right away without having to read the manual.

Four Layer Composition
The composition feature supports a total of four layers. This lets you place keyed video on picture-in-picture, then also superimpose a still picture imported into the unit's internal memory over that. PinP and key compositing use independent scalers, so you can adjust the positions and sizes however you like. You can switch the effects on and off at any time using the dedicated composition buttons. You can set the order of succession for PinP, PinP/KEY, and STILL to your preference. *The VR-50HD can store up to 4 still images in the internal memory. *STILL position and size compositing can not be adjusted.

12-Channel Digital Audio Mixer
The VR-50HD features a 12-channel digital audio mixer that mixes audio from cameras in addition to sound from four microphones, computers, and DVD players. Capturing and mixing 3G/HD/SD-SDI/HDMI audio in the audio mixer is also possible. Using the "Audio Follow" feature, you can even make the audio switch automatically from one source to another as the video source changes. Built-in delay and equalizer features make possible a broad range of use, from seminars to musical events.

USB3.0 Video/Audio Output
The USB 2.0/3.0 output enables web streaming with ease by simply connecting to a computer running a live streaming service. Recording is equally simple by using QuickTime or the dedicated Windows/Mac capture software, the Video Capture for VR. The video format is up to 1080/59.94p through USB3.0 and up to 720/29.97p through USB2.0. The resolution and frame rate of video format and audio level and delay can be changed thanks to the dedicated scaler and the dedicated volume and delay for the USB output.
* Note: Certified USB3.0 cables are required when output is set to 720p or higher.

Video Capture for VR
Video Capture for VR is application software that captures video and audio signals output from the VR-50HD USB port and saves them to video files on your connected Windows/Mac. Click on the Download tab to find the VR Capture software.

Specification

Video

Processing

4:4:4 (RGB), 10-bit
4:2:2 (Y/Pb/Pr), 10-bit

Input Connectors

3G/HD/SD-SDI: BNC type x 4 (INPUT 1--4)
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C. HDMI(DVI-D): Type A(19pin) x 4 (INPUT 1--4
* HDCP Supported.
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (INPUT 1--2)
Analog Video (SD): Composite (BNC type) x 2 (INPUT 1--2)
* INPUT 1-2: Select SDI, HDMI or Analog RGB, Composite using menu.
* INPUT 3-4: Select SDI, HDMI using menu.

Output Connectors

3G/HD/SD-SDI: BNC type x 2 (PGM OUT, AUX OUT
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C HDMI(DVI-D): Type A(19pin) x 3 (PGM OUT, AUX OUT, MULTI VIEW
* HDCP Supported Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (PGM OUT, AUX OUT)

Input/Output Level and Impedance

Composite: 1.0 Vp-p 75 ohms
Analog RGB: 0.7 Vp-p 75 ohms (H, V: 5 VTTL)
Analog HD: 1.0 Vp-p 75 ohms (Sync-Signal: Bi-Level/Tri-Level)

Supported Video Formats

SDI

480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5.

HDMI:(*2)

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1), 1400×1050/60Hz, 1920x1080/60Hz

HDMI(MULTI-VIEW Output):(*2)

1080/59.94p

Component

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

RGB:(*2)

1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1), 1400×1050/60Hz, 1920x1080/60Hz

Composite

NTSC, PAL

*Note

*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
*2 Conforms to CEA-861-E or VESA DMT Version 1.0 Revision 11.
* The video signal frame rate must match the unit's frame rate setting.
* The output format of HDMI and RGB/Component is always the same.
When a Video format is selected, component signal is output from the RGB/COMPONENT connector.
When a RGB format is selected, RGB signal is output from the RGB/COMPONENT connector.

USB-VIDEO

480/29.97p, 576/25p, 480/59.94p, 576/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p

Still Image

Windows(R) Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed.

Effects

Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Chrominance Key, Luminance Key
Others: Output Fade, Output Freeze, User Logo

Audio

Audio Processing

Sampling Rate: 24-bit/48 kHz

Input Connectors

AUDIO IN (1 to 4) jacks (XLR/TRS combo type)
* XLR type: 1 GND, 2 HOT, 3 COLD
* Phantom Power: DC 48 V (unloaded maximum), 5 mA (maximum load) (Current value per channel).
AUDIO IN (5 to 8) jacks (RCA phono type)
AUDIO IN (9 to 12) jacks (TRS type)

Output Connectors

AUDIO OUT L,R jacks (XLR-3-32 type)
* XLR type: 1 GND, 2 HOT, 3 COLD
AUDIO OUT L,R jacks (RCA phono type)
PHONES jack (Stereo 1/4-inch phone type) (headphones)
PHONES jack (Stereo miniature type) (headphones)

Input Level and Impedance

XLR/TRS: -68 to +4 dBu (Maximum: +22 dBu, 4 k ohms)
RCA phono: -10 dBu (Maximum: +8 dBu, 11 k ohms)
TRS: +4 dBu (Maximum: +22 dBu, 98 k ohms)

Output Level and Impedance

XLR: +22 dBu (Maximum: +22 dBu, 600 ohms)
RCA phono: -10 dBu (Maximum: +8 dBu, 1 k ohms)
Headphones: 25 mW + 25 mW, 20 ohms

Audio Formats

SDI: Linear PCM, 24bit, 48kHz, 2ch
* SMPTE 299M, SMPTE 272M-C
HDMI: Linear PCM, 24bit, 48kHz, 2ch
USB-AUDIO: Linear PCM, 16bit, 48kHz, 2ch

Audio Effects

Channel Effects: Compressor, Noise Gate, 3-Band EQ, Delay
Master Effects: Mastering, 3-Band EQ, Reverb

Others

Remote

Remote MIDI: 5 pin DIN type (IN, OUT/THRU)
RS-232C: D-sub 9 pin type x 1

USB Interface

USB2.0 port(host): Hi-Speed USB: Type A (for USB memory)
USB3.0 port(device): Type B for USB-VIDEO (Super-Speed/Hi-Speed), USB-AUDIO (Full-Speed)
- Uncompressed Video   4:2:2 (Y/Pb/Pr), 8-bit
- Bit-rate: max 2Gbit/s (1080/59.94p only active pixels)
- UVC (USB Video Class) supported uncompressed Video
- Certified USB3.0 cable is required when running at super-speed (anything at 720p or higher)

Display

7 inch Graphic color LCD 800 x 480 dots (touch screen)

Power Supply

AC Adaptor DC 24V Secondary AC Adaptor DC 9 V to 16 V (XLR-4-32 type)

Current Draw

2.5 A (DC 24V)

Operation Temperature

+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit

Accessories

AC Adaptor, Power Cord, Owner's Manual

System recommendations for recording (VR Capture) or streaming HD material

Windows

8.0 or higher

Mac

OS X 10.7 and higher

Common

Ivy Bridge Core i7 and higher
8GB Memory or more
USB 3.0 (supported USB3.0 Intel Chipset e.g. 7Series)
Note: USB Controller Chip by Renesas (formerly NEC) is not suitable
Current VR-50HD Streaming Software Compatibility list.

Size and Weight

Width

434 mm
17-1/8 inches

Depth

306 mm
12-1/16 inches

Height

149 mm
5-7/8 inches

Weight

5.3 kg
11 lbs. 11 oz.

Notes

* 0dBu=0.775 Vrms
* This product is a Class A digital device under FCC part 15.
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
* This product is intended for use in the following Electromagnetic environments: E1:residential, E2:commercial and light industrial, E3:urban outdoors, E4:controlled EMC environment, ex. recording studio (broadcasting studio) which are specified in EN55103-1 and EN55103-2.

Focusrite Liquid Saffire 56

Price List USD 1.170
Focusrite Liquid Saffire 56
Two Liquid Preamplifiers and Massive I/O!
The Liquid Saffire 56 is an incredible new 24-bit/192kHz FireWire audio interface from Focusrite. Not only does it boast a staggering amount of I/O at its affordable price - 28-in/28-out - but Focusrite also managed to pack in their famous Liquid technology. On the Liquid Saffire 56's first two microphone channels - of its eight total - you can dial in the right sound using your choice of 10 famous preamplifier models, based on gear from Neve, Manley, Avalon, API, and Universal Audio - to name just half! DSP mixing is also onboard the Focusrite Liquid Saffire 56.

High Quality 24-bit/192kHz FireWire/Thunderbolt™* interface
Liquid Saffire 56 doesn’t just offer preamp variety; sonic integrity is also guaranteed throughout. Both the Liquid and Saffire preamps ensure low noise and distortion, whilst quality digital conversion and JetPLL™ jitter elimination technology ensure pristine audio quality as your audio flows between the analogue and digital domains.

A Host of I/O
Alongside the two Liquid and six Saffire preamps are a host of I/O options; 10 analogue outputs, 16 channels of ADAT I/O, stereo S/PDIF, MIDI and two virtual ‘loopback’ inputs for routing digital audio between software applications — ideal for capturing audio playback within your computer. Mic, Line and Instrument inputs all use independent connectors, with the input type for each channel selectable via custom control software. Consequently, all the inputs can remain permanently connected, ready for whatever your recording session demands. In addition, word-clock I/O is provided on BNC connectors, allowing Liquid Saffire 56 to act as either a master clock for your studio, or as a slave to an existing sync system.

Every channel features an independent phantom power and a high-pass filter, switchable from the front panel, with the two instrument channels also featuring -9dB pads for additional headroom. Front panel five-step LED metering for all inputs, including ADAT and S/PDIF, offers accurate viewing of all levels.

Saffire Mix Control
Saffire Mix Control, the zero-latency 18 x 16 DSP Mixer/Router software provided with Liquid Saffire 56 features powerful output routing and monitoring. It also provides intuitive one-click set-up options, a clear and concise mixing layout, large on-screen metering for inputs, outputs and submixes, and control over the choice of Liquid emulation.

Monitoring
Two independent headphone buses are provided, each with their own level controls available on the front panel. A dedicated stereo monitor mix output features pads for improved sound quality when connected to active monitor speakers. An 'anti-thump' circuit protects your monitor speakers from spikes when booting up or shutting down the unit.
Key Features:

• Two Liquid Preamps :The marriage of a hugely flexible analogue front end with cutting-edge dynamic convolution DSP, each Liquid Preamp lets you choose from ten different classic preamp emulations, with an eleventh ‘flat’ option.
• Six High Quality Award-winning Focusrite Preamps :Six award-winning Saffire preamps complement two Liquid preamps. All eight demonstrate the same wide bandwidth philosophy behind the early vintage Focusrite units.
• High Quality 24-bit/192kHz FireWire/Thunderbolt™* interface :Professional digital conversion and JetPLL™ jitter-elimination technology; pristine audio quality and reliable synchronisation are guaranteed.
• Total I/O Count of 28 Inputs and 28 Outputs : A host of I/O options are provided*, including a unique 'loopback' facility for routing audio between software applications via Saffire MixControl.
• Suite of Focusrite VST/AU plug-ins :Upgrade your standard sequencer effects and bring a touch of class to your session with Focusrite Compression, Reverb, Gating and EQ VST/AU plug-ins.
• Two separate headphone buses :Two artists can receive independent and fully customised monitor mixes. Each output has an independent level control available on the front panel.
• Saffire Mix Control Zero-latency DSP Mixer/Router :Routing flexibility and intuitive one-click setup solutions; Saffire MixControl provides an 18 x 16 DSP mixer with excellent output routing and monitoring capabilities.
• Front panel five-step LED metering :LED metering for each of the analogue, ADAT1, ADAT2 or S/PDIF inputs offers accurate viewing of levels direct from the front fascia.

Specification:

Microphone Inputs

Dynamic Range (A-Weighted):

109dB

SNR (A-weighted):

-109dB

Frequency Response:

20Hz - 20kHz +/- 0.1 dB

THD+N:

0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)

Noise:

EIN > 125dB (128dB analogue to digital) (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)

Maximum level (A-weighted):

8dBu at 1%

Line Inputs

Dynamic Range (A-Weighted):

109dB

SNR (A-weighted):

-109dB

Frequency Response:

20Hz - 20kHz +/- 0.1dB

THD+N:

< 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)

Noise:

-90dBu (22Hz/22kHz bandpass filter)

Maximum level (A-weighted):

28.5dBu at 1%

Instrument Inputs

Frequency Response 20Hz-20KHz +/- 0.1dB

Maximum Input Level min gain no pad +8dBu

Maximum Input Level max gain no pad -42dBu

THD+N, -1dBFS, min gain, no pad < 0.0015%

SNR 109dB "A"

DNR 109dB "A"

Input Impedance > 1MOhm

X-talk < -100dB

Adjustable Gain > 50dB

Pad Attenuation 10dB

Headphone Outputs

Frequency Response 20Hz-20KHz +/- 0.1dB

SNR 109dB "A"

DNR 109dB "A"

Maximum Output into 32R +12.4dBu (+10.2dBV)

Power into 32R 250mW

Output Impedance < 7Ohms

Load Impedance > 24Ohms

Line level Outputs

Dynamic Range (A-Weighted):

108dB

SNR (A-weighted):

-108dB

THD+N:

< 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)

Maximum level (A-weighted):

15.7dBu at 0.883%

Additional Conversion Performance

Clock jitter < 250 picoseconds

THD+N AMPL (A-weighted)= -109dBFS

Connectivity

Analogue Channel Inputs (Inputs 1-8)

Mic inputs 1-8 on rear XLR’s.

Line inputs 1-8 on rear 1/4” TRS.

Instrument inputs on channels 3 and 4 (separate front panel 1/4” TRS).

Notes

Individual switchable High Pass Filter on all inputs.

Phase switch on inputs 3, 5 and 7.

Input Pad on inputs 3 and 4 = -10dB.

Analogue Outputs

Line level 10 x 1/4” TRS Jack.

Notes

Outputs Monitor 1 and 2 have anti-thump protection circuitry.

Digital I/O

SPDIF input and output (RCA phono) on rear panel, (24-bit, 44.1 - 192kHz),  output transformer isolated.

Optional AES output mode with professional channel status and voltage levels on SPDIF output.

2 x ADAT In / Out 16 channels (44.1 / 48kHz), 8 channels S-MUX (88.2 / 96kHz), 4 channels S-MUXII (176.4 / 192kHz).

ADAT Input and Output 2 can be re-configured to be optical SPDIF input / output via control panel.

BNC Word clock input and output (75 ohms).

MIDI I/O

1 in / 1 out (16 channels) on rear panel.

Headphone monitoring

2 x 1/4” TRS Jack on front panel (mirrors outputs 7-8 and 9-10). NOTE: These are high power headphone drivers.

Other I/O

2 x 6 pin FireWire 400 socket - also compatible with FireWire 800 and Thunderbolt

2 Standard 5-pin DIN MIDI connectors: In and Out

IEC mains power input connector

Weight and Dims

5kg / 11 Ibs

480mm / 19" (W) x 90mm / 3.6" (H) x 235mm /9.3" (D)
