P-Audio Challenger C18-650EL

Price List Rp.2.145.000

P-Audio Challenger C18-650EL

The P Audio C18-650EL is a high output low frequency transducer. The C18-650EL is an upgraded design that features many of P Audio s new technologies and performance upgrades. The 18 inch (457mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C18-650EL employs a large 3.9 inch (99.3mm) diameter voice coil that provides an AES rated 1200 watts of continuous power handling and a full 4800 watts of peak rated power handling when sufficient amplifier headroom is available. The transducer is optimized for use in properly tuned vented enclosures and will provide maximal reliability when both a vented enclosure and active high pass filtering are employed. The C18-650EL utilizes P Audio s Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas. The voice coil design is a bobbin wound geometry with P Audio s rectangular wire technology to improve conversion efficiency and provide a large crosssectional area for superior cooling. The transducer employs magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response. The double spider design further enhances system mechanical control and reliability. The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.

Features:

3.9” Large Format Voice Coil

4800 Watts Peak Power Handling

Active Balanced Cooling

Ferrite Magnetics

Precision Rectangular Ribbon Wire

Double Spider Suspension

Integrated Demodulation Rings

Die Cast Aluminum Chassis

Specification

General Specification:

Nominal diameter

457 mm/18 in

Power rating

1200 W(AES)

Nominal impedance

Sensitivity

98 dB

Frequency range

30-200 Hz

Chassis type

Cast aluminum

Magnet type

Ferrite

Magnet weight

3.56 kg/125.7 oz

Voice coil diameter

99.3 mm/3.9 in

Coil material

CCA-R

Former material

Glass fiber

Cone material

Paper

Surround material

Cloth

Suspension

Double

X-max

5.25 mm/0.21 in

Gap depth

15.0 mm/0.59 in

Voice coil winding width.

25.5 mm/1.0 in

Net Weight

13.3 kg/29.3 lb

Packing Dimension WxDxH

505 x 505 x 275 mm

Shipping Weight

14.7 kg/32.4 lb

Small Signal Parameter

5.8

46 Hz

Mms

179.84 g/6.34 oz

Mmd

155.18 g/5.47 oz

Qms

5.39

Qes

0.58

Qts

0.52

Vas

144.23 lt/5.09 ft

22.76 Tm

Cms

6.9e-05 m/N

Rms

9.57 Ns/m

Le (at 1kHz)

0.63 mH

1225 cm2

Roland AC-33 Acoustic Chorus Guitar Amplifier

Price List Rp.4.550.000
Roland AC-33 Acoustic Chorus Guitar Amplifier
Super Portable, Versatile, Battery-Powered Stereo Acoustic Guitar Amp
Rich, deep, stereo sound to go — introducing the AC-33, the world’s first battery-powered amp made specifically for acoustic guitar. Portable yet powerful, the AC-33 provides true stereo sound, Guitar and Mic/Line channels, custom-tailored effects, anti-feedback, and a Phrase Looper. But this amp was made to go places no amp has gone before. Thanks to its battery-power capability, the AC-33 lets you take your act anywhere: into the backwoods, onto the streets, or wherever your imagination leads you.

New Rosewood Finish!
Now the AC-33 is available with beautiful rosewood-look cabinets, offering an alternative to the standard stage-ready black finish. The attractive woodgrain styling perfectly matches the atmosphere of your living room or studio, as well as the aesthetic of your acoustic guitars.

30 watts (15W+15W) of natural, stereo acoustic sound through twin speakers
Runs on AC power or eight AA batteries (accepts rechargeable NiMH types)
Dual-channel configuration: Guitar and Mic/Line channel
Reverb, chorus, and ambience effects (Ambience adds spatial, 3D-type depth to the sound)
Phrase Looper with 40 seconds of record time
Stereo AUX input (connect MP3/CD players, etc), headphone output
Anti-feedback function
Built-in tilt-back stand
Removable battery cartridge for easy battery replacement
Now available in rosewood finish (model # AC-33-RW)

Natural, Stereo Sound
Equipped with Roland’s latest DSP technology, the AC-33, delivers pure, rich acoustic sound with projection far beyond its size. Its true stereo design (15 watts x 2) enables brilliant stereo/multi-band chorus with “Wide” mode, plus shimmering reverb and 3D-type ambience effects tailored specifically for acoustic guitar.

Strum and Sing
The AC-33 provides two discrete channels: Guitar and Mic/Line. Plug in an acoustic guitar and a microphone (or line-level instrument) and mix them separately. Both channels have dedicated controls for volume, multi-band EQ, and chorus. The Mic/line channel offers both XLR and 1/4" inputs. You can also connect an MP3/CD player to the stereo AUX input for play-along practice or performance. Master volume, reverb, ambience, and anti-feedback are provided as well.

Phrase Looper
The AC-33’s onboard Phrase Looper lets you record, loop, and jam over your own guitar riffs or incoming audio from the AUX input. Record and loop up to 40 seconds at a time, and amaze your listeners with sound-on-sound performances that you create on the spot.

Specification:

Rated Power Output

15 W + 15 W (when using the AC adaptor)
10 W + 10 W (when using the Alkaline batteries)

Nominal Input Level (1 kHz)

GUITAR Channel: -10 dBu
MIC/LINE Channel: -50 dBu/-20 dBu
AUX IN: -10 dBu

Nominal Output Level (1 kHz)

LINE OUT: -10 dBu

Speakers

12 cm (5 inches) x 2

Controls

[GUITAR Channel]

VOLUME Knob
BASS Knob
MIDDLE Knob
TREBLE Knob
CHORUS Switch (OFF, SPACE, WIDE)

[MIC/LINE Channel]

VOLUME Knob
BASS Knob
TREBLE Knob
CHORUS Switch (OFF, SPACE, WIDE)

[REVERB/AMBIENCE]

REVERB/AMBIENCE Knob

[ANTI-FEEDBACK]

ON/OFF Switch

[LOOPER]

REC/PLAY/OVERDUB Button
STOP/CLEAR Button

[AUX IN Controls]

LEVEL Knob
MASTER Knob
POWER Switch

Indicators

REC, PLAY, OVERDUB

POWER

Connectors

GUITAR Channel Input Jack (1/4-inch phone type)
MIC/LINE Channel Input Jacks
(XLR type, Balanced)
(1/4-inch TRS phone type, Balanced)
AUX IN Jacks
L, R (RCA phono type)
(Stereo miniature phone type)
LINE OUT Jacks L (MONO), R (1/4-inch phone type)
PHONES Jack (Stereo 1/4-inch phone type)
FOOT SW Jack [EFFECTS] (TIP: CHORUS, RING: REVERB/AMBIENCE) (1/4-inch TRS phone type)
FOOT SW Jack [LOOPER] (TIP: REC/PLAY/OVERDUB, RING: STOP/CLEAR) (1/4-inch TRS phone type)
DC IN Jack

Power Supply

AC Adaptor (included, DC 13 V),
Dry battery LR6 (AA) type (alkaline) x 8, or
Rechargeable Ni-MH battery (AA, HR6) type x 8

Current Draw

490 mA

Expected battery life under continuous use

Alkaline battery: Approx. 8 hours

Rechargeable Ni-MH battery (AA, HR6): Approx. 9 hours
These figures will vary depending on the actual conditions of use.

Accessories

Owner’s Manual, AC Adaptor, AC Cord

Options (Sold separately)

Footswitch: BOSS FS-5U, BOSS FS-6

SIZE AND WEIGHT (EXCLUDING BATTERIES)

Width

318 mm

12-9/16 inches

Depth

223 mm
8-13/16 inches

Height

243 mm
9-5/8 inches

Weight

4.7 kg
10 lbs. 6 oz.

0 dBu = 0.775 VrmsIn the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Peavey Distro™ Power Distribution

Price List USD 606

Peavey Distro™ Power Distribution

Enough power to feed all your power amps, FOH and backline with a convenient plug in system ... no electrician needed. Provides 6 independent 20 amp circuits, each with individual circuit breakers.

Features:

Provides 6 independent 20 amp circuits
Six HD magnetic 20 Amp breakers feeding six 15/20 amp duplex outlets
Input 240v/40A (ETL)
2 ru
Weight Unpacked: 18.00 lb(8.164 kg)
Weight Packed: 23.00 lb(10.432 kg)
Width Packed: 9.5"(24.13 cm)
Height Packed: 23.75"(60.325 cm)
Depth Packed: 22"(55.88 cm)

Peavey 16FX™ New Mixer

Price List USD 1.002
Peavey 16FX™ New Mixer
Peavey FX™ Series mixers feature exclusive technologies to put your live-sound production over the top, with excellent recording tools like crystal-clear Silencer™ mic preamps, two digital effects processors plus built-in MP3 compression and USB ports for streaming audio.
Run the stage and monitors from the same console with the FX Series! Four pre-fader auxes per channel provide four separate monitor mixes, while the two post-fader auxes are ideal for adding effects, whether onboard or from your own collection. You can even send multiple effects--reverbs, delays, compression, expander, de-esser, chorus, flanger, tube emulator, vocal enhancer and gate--simultaneously to any channel.

The digital output processing section includes Peavey's patented Feedback Ferret® digital feedback eliminator, dual five-band parametric EQs, dual 27-band graphic EQs, digital delay lines, and even dynamics/limiters, and can be configured for stereo, dual mono or with a built-in electronic crossover in Subwoofer mode.
All FX Series mixers feature dual USB ports that allow streaming of digital audio directly to a computer or memory stick, with built-in MP3 compression. Record your rehearsals, songwriting sessions or live performances directly to an inexpensive USB drive with no other hardware needed.
"This console has it all built in with no additional outboard FX needed for the gig."

FX Series mixers feature new, Peavey-exclusive technology to enhance live sound reproduction and project studio recording, including Silencer mic preamps, which allow very high gain with low noise and distortion for crystal-clear signal reproduction. The four pre-fader auxes per channel provide 4 monitor mixes while the two post-fader auxes are ideal for adding effects (those built-in or outboard). These mixers also include dual DSP engines that allow multiple simultaneous effects assignable to any channel via aux 5/6 on DSP engine 2. Onboard effects include reverb,reverb enhanced, delay, compression,expander, de-esser, chorus, flanger, tube emulator, vocal enhancer and gate. Up to 3 processors can be chained together on each of the two available Effects windows. The digital output processing section includes Feedback Ferrets, dual 5- band Parametric EQ or dual 27-band Graphic EQs, digital delay lines, and dynamics/limiters. The output section can be configured forStereo, Dual mono or with a built-in electronic crossover in Subwoofer mode. The mixers' dual USB ports, which allow streaming of digital audio directly to a computer or memory stick, also feature exclusive, built-in MP3 compression. You can record your rehearsals, songwriting sessions or live performances directly to an inexpensive USB stick ... no other hardware needed and then transfer them to your computer to burn CDs or to transmit electronically.

Features:

2 stereo channels with dual mic/line inputs
Dual DSP engine with digital effects and output processing including Feedback Ferret®, 27-band GEQ/5-band PEQ, delay and limiter
USB "A" connection to record directly to or playback from memory stick
USB "B" connection for digital audio output and input
3-band EQ with sweepable mid-frequency and fixed low cut filters
48 volt phantom power
6 AUX sends
4 sub groups
Switching power supply
12 "Silencer™ Mic Pre" XLR inputs
Weight Unpacked: 24.00 lb(10.886 kg)
Weight Packed: 31.00 lb(14.061 kg)
Width Packed: 12.5"(31.75 cm)
Height Packed: 22.25"(56.515 cm)
Depth Packed: 21.37"(54.2798 cm)

Friday, September 21, 2012

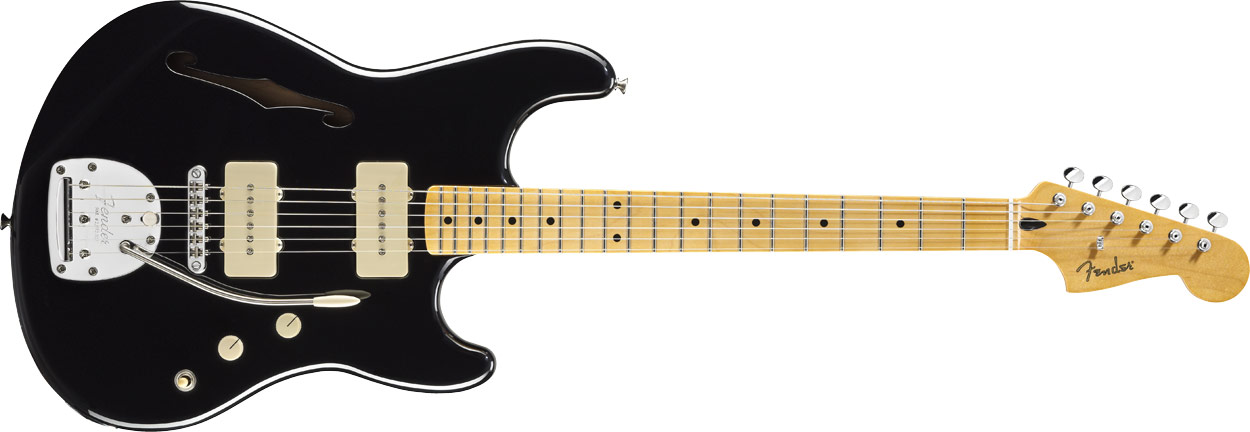

Fender Pawn Shop™ Offset Special

Price List Rp.10.030.000
Fender Pawn Shop™ Offset Special

Pawn Shop Series guitars are inspired by the more eccentric Fender creations of the mid-’60s to mid-’70s, which sometimes found their way to the outside world and into the more esoteric pages of Fender history. Crafted for thoroughly modern sound and quality, they present a creative alchemy of diverse Fender elements. New for 2012, the Pawn Shop Series introduces an unconventional new assortment of “guitars that never were but should have been.”

The Pawn Shop Offset Special guitar is one of Fender’s most offbeat designs ever. Features include a semi-hollow double-cutaway body with an f hole and sleek offset waist, a phenomenal-sounding pair of large JZHB humbucking pickups with three-way toggle switching and an Adjusto-Matic™ bridge with vintage-style floating tremolo tailpiece. This is a guitar from the past and the future.

Specification:

General
Model Name:	Pawn Shop™ Offset Special
Series:	Pawn Shop™
Color / Part #:	2-Color Sunburst 014-3402-303 Black 014-3402-306 Shell Pink 014-3402-356
Body
Body:	Alder
Body Shape:	Offset
Body Finish:	(0143402303, 0143402306, 0143402356) Polyester
Neck
Neck Shape:	'60s "C" Shape
Number of Frets:	21
Fret Size:	Medium Jumbo
Fretboard Radius:	9.5" (24.1 cm)
Fretboard:	Maple
Neck Material:	Maple
Neck Finish:	Urethane
Nut Width:	1.650” (42 mm)
Scale Length:	25.5" (64.8 cm)
Electronics
Pickup Configuration:	H/H
Bridge Pickup:	JZHB Humbucking
Neck Pickup:	JZHB Humbucking
Pickup Switching:	3-Position Toggle: Position 1. Bridge Pickup, Position 2. Middle Pickup, Position 3. Neck Pickup
Controls:	Master Volume, Master Tone
Hardware
Hardware:	Chrome
Bridge:	Adjusto-Matic™ Bridge with Vintage Style "Floating" Tremolo Tailpiece and Tremolo Lock Button
String Nut:	Synthetic Bone
Tuning Machines:	Vintage Style Tuning Machines
Miscellaneous
Strings:	Fender® USA Super 250L, NPS (.009-.042 Gauges)
Unique Features:	Humbucking Jazzmaster Pickups, Semi-Hollow Body, Unique Shape
Accessories
Case/Gig Bag:	Deluxe Gig Bag

Thursday, September 20, 2012

Charvel Desolation™ DX-1 FR

Price List Rp.7.450.000
Charvel Desolation™ DX-1 FR
Two classic Charvel body shapes return in sleekly modern Desolation series form with the introduction of new Desolation Star DST and Soloist DX guitars. With a variety of features and finishes prized by discerning players everywhere, both deadly models deliver the devastating tone, killer looks and high-performance playability that separate the Desolation series from all others.

The Desolation Soloist DX-1 FR features Charvel’s classic Soloist body profile, with features including a flame maple top (on trans finishes), multi-ply binding (body, neck and headstock; single-ply on Satin Black finish), through-body maple neck with scalloped heel and scalloped upper horn, compound radius (12”-16”) rosewood fingerboard with 24 jumbo frets and Charvel “shark tooth” inlays, EMG® 85 (neck) and 81 (bridge) humbucking pickups with black bezels and three-way toggle switching, single domed metal volume control knob, “football” jack plate, Floyd Rose® locking tremolo, sealed die-cast tuners and black nickel hardware. Available in Black, Satin Black, Snow White, Cherry Sunburst, Trans Black, Trans Red and Trans Blue Smear gloss finishes with matching headstock.

Specification:

General
Model Name:	Desolation™ DX-1 FR
Model Number:	29313115
Series:	Desolation™
Body
Body:	Mahogany
Neck
Number of Frets:	24
Fret Size:	Jumbo
Position Inlays:	Abalam Shark Tooth
Fretboard Radius:	12” to 16” Compound Radius (304.8 mm to 406.4 mm)
Neck Material:	Maple
Neck Finish:	Oiled
Nut Width:	1.6875" (43 mm)
Scale Length:	25.5" (64.8 cm)
Fingerboard and Color Options
Part Number:	2931311515, 2931311550, 2931311557, 2931311586, 2931311590, 2931311596
Color:	(515) Cherry Sunburst (550) Flat Black (557) Transparent Black (586) Transparent Blue Smear (590) Transparent Red (596) Snow White
Fretboard:	Rosewood
Electronics
Pickup Configuration:	H/H
Bridge Pickup:	EMG® 81 Humbucking Pickup (Bridge)
Neck Pickup:	EMG® 85 Humbucking Pickup (Neck)
Pickup Switching:	3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Hardware
Hardware:	Black Nickel
Bridge:	Recessed Floyd Rose® FRT-O2000 Double-Locking Tremolo
String Nut:	Floyd Rose® R3
Miscellaneous
Unique Features:	Floyd Rose® Locking Tremolo, Compound Radius Fingerboard with Jumbo Frets, Flame Maple Top, Multi-Ply Binding (Body, Neck and Headstock; Single-Ply on Satin Black finish), Through-Body Neck and Single Domed Metal Volume Control Knob
