Price List Rp.13.860.000

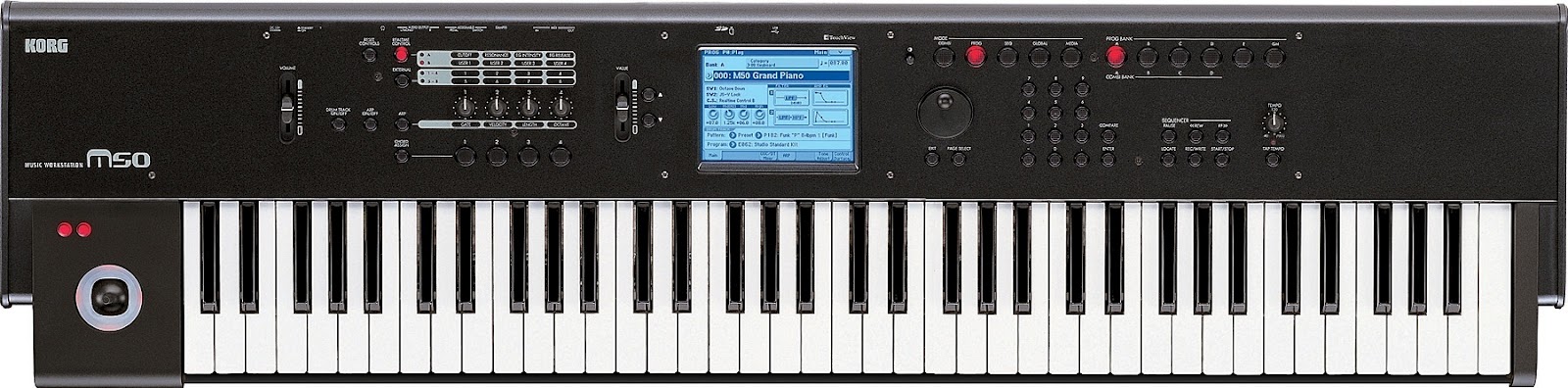

KORG M50-73 Synth Keyboard WorkstationThe Music Workstation for Performance; Portability; Price
Weighing in at just fifteen pounds is the fiery KORG M50, the music workstation ready to take on all contenders! Incredible sounds; fat & juicy combis, splits and layers; a plethora of ace effects; dynamic Drum Tracks; enhanced poly-arpeggiators; classic sequencing tools; a solid, confident keybed; up-to-date SD storage; companion editing software and our famous TouchView interactive display - it all adds up to an invigorating and sexy MIDI keyboard instrument that could only come from KORG.
Need a Keyboard Workstation? There's One for Everyone
Over twenty years of category-defining and redefining keyboard workstation expertise beats in the heart of the M50 Music Workstation. Just as the M3 borrowed elements from the legendary OASYS, the M50 captures all the sonic firepower of the M3, distilled into a performance instrument that is second to none., With all of its features and specifications, the M50 Music Workstation just may be the keyboard you've been waiting for! Both 73* and 61-note versions are available, sporting a new semi-weighted Natural Touch keyboard. This new fast and responsive synthesizer keybed facilitates both expressive and dynamic performing. Tipping the scales at a mere 46 pounds, the seriously portable 88 key version features our top-of-the-line RH3 Graded Hammer Action, and provides a satisfying performance experience for the piano purist!
The Korg M-50; A Natural Performer
Made to be played, the Korg M50 Music Workstation is inviting and comfortable. The TouchView screen is intuitive and interactive, allowing the uniquely angled front panel to remain refined and uncluttered. The buttons themselves are rock solid, backlit and rounded for optimum visibility and ease-of-use under any playing conditions. In addition to Korg's four-way joystick and multi-function knobs, the M50 Music Workstation offers four Chord Triggers that provide a flexible and fun way to play chords and trigger arp patterns. A ten-key numeric keypad allows on-demand instant access to sounds, combis and other parameter/values.
Arpeggiation Maximus
The arpeggiator has been a staple on Korg keyboards since the 1980s, and the M50 more than delivers on that heritage! In addition to the ubiquitous up, down and random patterns you’d expect, the dual polyphonic arpeggiators on the M50 can serve up cascading chords, groovin’ bass lines, chord-driven picking patterns and punchy accents to spice up your performance and set your musical ideas on fire. In the Sequencer and Combi modes, both arpeggiators can run simultaneously, each addressing different timbres, creating powerful possibilities such as one running drum grooves and one running bass patterns – or even using velocity to switch between patterns on the same sound!
Made to be played, the Korg M50 Music Workstation is inviting and comfortable. The TouchView screen is intuitive and interactive, allowing the uniquely angled front panel to remain refined and uncluttered. The buttons themselves are rock solid, backlit and rounded for optimum visibility and ease-of-use under any playing conditions. In addition to Korg's four-way joystick and multi-function knobs, the M50 Music Workstation offers four Chord Triggers that provide a flexible and fun way to play chords and trigger arp patterns. A ten-key numeric keypad allows on-demand instant access to sounds, combis and other parameter/values.
Arpeggiation Maximus
The arpeggiator has been a staple on Korg keyboards since the 1980s, and the M50 more than delivers on that heritage! In addition to the ubiquitous up, down and random patterns you’d expect, the dual polyphonic arpeggiators on the M50 can serve up cascading chords, groovin’ bass lines, chord-driven picking patterns and punchy accents to spice up your performance and set your musical ideas on fire. In the Sequencer and Combi modes, both arpeggiators can run simultaneously, each addressing different timbres, creating powerful possibilities such as one running drum grooves and one running bass patterns – or even using velocity to switch between patterns on the same sound!
Dual arpeggiator setup page
Graphic polyphonic arpeggiator editor
KARMA Chameleon!
When your M50 is connected to a PC or Mac, you can add the power and flexibility of KARMA® technology with the optional KARMA M50 software. For more information, please visit www.karma-lab.com
Rapid Results Sequencing
Korg wrote the book on workstations, and the M50 delivers every chapter! The on-board sequencer is the core of your music production studio. Over 200,000 notes can be recorded on 16 MIDI tracks and up to 128 songs. Enhanced 480 ppq resolution captures your performance with pinpoint accuracy – whether you play in realtime or step notes in one at a time. A plethora of advanced, yet easy-to-use editing features are available to help you sculpt your song into its final form.
Song Templates designed for a variety of musical genres allow you to get started quickly, with sounds and effects all selected and routed for you. Or try Korg’s unique RPPR (Realtime Pattern Play/Recording) function, calling up any of the 671 drum patterns to get started, and assigning shorter patterns and phrases to individual keys; you can even loop each track to build the perfect groove before the inspiration runs out! Sequence individual sections of the song separately, and then use the Cue List function to assemble and tryout different arrangements – you’ll be remix ready! And since you never know when inspiration will strike, the one-touch record (Auto Song Setup) feature transfers all your current settings into a new song and starts the sequencer, capturing your ideas as the foundation of a new song.
Main sequencer page
Mixing page
Individual track looping
Track editing commands
Event edit screen
Cue List
Sounds. Easy.
The M50 is chock full of sounds – and features. Yet Korg’s high-visibility 320 x 240 pixel resolution TouchView interface allows direct touch-screen access to hundreds of parameters. Finding the sounds you need is simple thanks to our organizing them by category, as we do effects, drum patterns, arps and even waveforms. No other keyboard in its class offers anything approaching this level of elegance or intuitive ease-of-use. So take an M50 home today, and make your music – on your M50!
Plug-In Performance
Your M50 includes both stand-alone and plug-in sound editing software for more detailed graphic editing on your computer, and connects directly via USB. The plug-in version allows you to edit the M50’s sounds from inside any DAW (VST, Audio Units, and RTAS formats), allowing your edits and changes to be part of the song file, and without having to switch applications to tweak a sound. The M50 also uses convenient SD cards for economical and reliable data storage.
Specifications:
Tone Generator:
HI (Hyper Integrated) sound engine
48kHz Sampling frequency
64MB PCM ROM
470 multisamples + 518 drum samples
48kHz Sampling frequency
64MB PCM ROM
470 multisamples + 518 drum samples
Polyphony:
62 voices, 62 oscillators (single mode)
31 voices, 62 oscillators (double mode)
31 voices, 62 oscillators (double mode)
Keyboard:
61 keys and 76 keys; velocity and aftertouch sensing
88-key weighted (Real weighted Hammer action 2); velocity and aftertouch sensing
88-key weighted (Real weighted Hammer action 2); velocity and aftertouch sensing
Effect Section:
Stereo digital multi-effect system– all usable simultaneously
2 Master effects (mono in, stereo out)
1 Insert effect (stereo in/out)
Master EQ (3-band stereo)
2 Master effects (mono in, stereo out)
1 Insert effect (stereo in/out)
Master EQ (3-band stereo)
Number of Effect types:
89 (available for Insert effects or Master effects)
Programs, Combinations, Drumkits:
512 Programs (512 preloaded)
384 Combinations (384 preloaded)
24 Drumkits (16 preloaded)
GM sound map compatible – 128 programs + 9 drum kits (ROM)
384 Combinations (384 preloaded)
24 Drumkits (16 preloaded)
GM sound map compatible – 128 programs + 9 drum kits (ROM)
Sequencer:
16 tracks
1/192 resolution
200 songs
1/192 resolution
200 songs
Maximum capacity:
200,000 notes
20 cue lists
150 preset drum patterns/100 user patterns
(for each song)
Supports TR/TRITON format (.SNG file), StandardMIDI Files (format 0 and 1)
20 cue lists
150 preset drum patterns/100 user patterns
(for each song)
Supports TR/TRITON format (.SNG file), Standard
RPPR (Realtime Pattern Play/Recording) function:
One set available for each song
Dual Polyphonic Arpeggiator:
Two arpeggiators, useable simultaneously
(Combination, Sequencer modes)
5 preset arpeggio patterns; 216 user arpeggio patterns (200 preloaded)
(Combination, Sequencer modes)
5 preset arpeggio patterns; 216 user arpeggio patterns (200 preloaded)
EXB-SMPL Sampling Upgrade (sold separately):
48 kHz, 16-bit linear
Memory capacity=64MB* (when 2/32 MB SIMMs installed, 16 MB SIMM included with the EXB-SMPL)
4,000 samples / 1,000 multisamples (128 indexes are available per multisample), Time Slice, Time Stretch/Compress, other editing functions
AIFF, WAVE, AKAI (S3000/S1000 samples and mapped multisamples only), Korg format sample data loading are available
Sample data exporting as AIFF, WAVE format available
Memory capacity=64MB* (when 2/32 MB SIMMs installed, 16 MB SIMM included with the EXB-SMPL)
4,000 samples / 1,000 multisamples (128 indexes are available per multisample), Time Slice, Time Stretch/Compress, other editing functions
AIFF, WAVE, AKAI (S3000/S1000 samples and mapped multisamples only), Korg format sample data loading are available
Sample data exporting as AIFF, WAVE format available
*User-installable. Use 16 MB or 32 MB 72-pin SIMM modules that are either Fast Page or EDO-compatible, with an access speed of 60 nsec or faster, 11-bit addressing required. For details refer to a TR dealer near you.
SD Card/MEDIA Mode Functions:
Load, Save, Utility, Data filer functions (Save/Load of MIDI exclusive data)
CD-ROM (ISO9660 level 1, AKAI S-100/3000 format) loading available (when EXB-SMPL installed)
CD-ROM (ISO9660 level 1, AKAI S-100/3000 format) loading available (when EXB-SMPL installed)
Controllers:
Joystick
2 Assignable switches
4 Assignable knobs
Audition key
Category key
2 Assignable switches
4 Assignable knobs
Audition key
Category key
Inputs:
Assignable Switch/Pedal
Damper (half damper supported)
Damper (half damper supported)
Outputs:
MAIN=L/MONO, R
Individual-1, 2
Headphones
Individual-1, 2
Headphones
USB:
USB-B connector (USB ver.1.1 supported), providing USB MIDI communication
Media Slot:
SD card™ slot
2.7~3.6 V compatible
16 MB~1 GB memory capacities supported
2.7~3.6 V compatible
16 MB~1 GB memory capacities supported
IN, OUT, THRU
Graphical User Interface:
240x64 dots LCD display with back-light
Dimensions:
61-key
41.14” (W) x 11.89” (D) x 3.74” (H)
76-key
49.53” (W) x 11.89” (D) 3.74” (H)
88-key
55.67" (W) x 14.37" (D) x 4.84" (H)
Weight:
61-key
17.20 lbs
76-key
20.28 lbs
88-key
53.13 lbs
Power Consumption:
13 W (when EXB-SMPL and 2/32 MB SIMMs are installed)
Accessories:
AC/AC power supply
System compatibility for connecting computer:
Windows:
Supported OS: Microsoft Windows XP Home Edition/Professional/Vista
Supported Computer: A computer with USB connector that meets the above requirements
Please use the latest Korg USB/MIDI driver
Supported Computer: A computer with USB connector that meets the above requirements
Please use the latest Korg USB/MIDI driver
Macintosh:
Supported OS: Mac OS X 10.2 or later
Supported Computer: An Apple Macintosh, including Intel/Mac with available USB port that meets the requirements for the above operating system
Please use the latest Korg USB/MIDI driver.
Supported Computer: An Apple Macintosh, including Intel/Mac with available USB port that meets the requirements for the above operating system
Please use the latest Korg USB/MIDI driver.
Notes:
* SD card™ is a trademark.
* Preload Data (Demo Songs, etc.) loads inside ROM
* Sound processed with INFINITY more info about Keyboard
* SD card™ is a trademark.
* Preload Data (Demo Songs, etc.) loads inside ROM
* Sound processed with INFINITY more info about Keyboard
