Price List Rp.3.450.000 / Piece

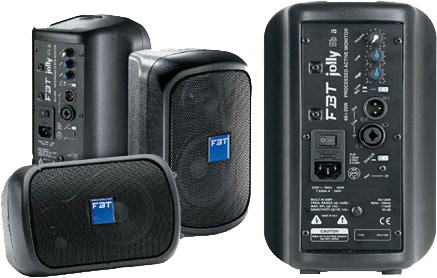

FBT Jolly 5Ba Active Speaker
The FBT Jolly Series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in a black or white finish, the Jolly 5ba/ Jolly 5baw speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.With the use of optional accessories, the Jolly 5ba/ Jolly 5baw speakers can be mounted on mic stands for many near field monitor applications, live sound and as a studio monitor.
The FBT Jolly 5ba, 5 baw are of two-way design incorporating an 5.25” low frequency woofer and a 1” mylar diaphram dome tweeter. Cabinet dispersion is 90°H x 90°V allowing for wide pattern coverage. The active internal crossover is at a fixed frequency of 2.7k. With a frequency range of 80Hz - 20kHz, the Jolly 5 ba/ baw speakers provide hi fidelity sound for both speech and music applications with a maximum SPL of 114 dB.
A front face steel grille protects the speaker from external damage. FBT’s ADAP® Advanced Dynamic Active Protection circuitry protects speaker/driver components against failure. The Bi amplified Jolly 5ba/5baw active speakers feature a 80w RMS Class G low frequency amp, and a 20 w RMS Class AB high Frequency amp. The control panel features a volume control, 2 band EQ with +- 12dB of cut/boost @ 80Hz LF and +- 12 db cut/ boost @ 10kHz, a balanced Neutrik® input combo jack (Female XLR, ¼” TRS, ¼”), balanced XLR link output jack, Microphone / Line input switch, and Ground lift switch, LED Power on and Limiter LED Indicators.
The two M-6 fly points built into the cabinets, along with the optional S/J 5u or S/J 5 mounting brackets allow the Jolly 5 speakers to be surface mounted on walls or ceilings.For portable or fixed use the Jolly 5 speakers can be mounted on mic stands by using the optional A/J 5 adapters for vertical mounting. The S/J 5u- U bracket when used along with the MSA 200 adapter kit, allows horizontal mounting with adjustable tilt angling of Jolly 5ba speakers on a tripod microphone stands for near field monitoring use.
Applications
60W+20W - 115DB SPL Processed Active Monitor Features
Specifications
A front face steel grille protects the speaker from external damage. FBT’s ADAP® Advanced Dynamic Active Protection circuitry protects speaker/driver components against failure. The Bi amplified Jolly 5ba/5baw active speakers feature a 80w RMS Class G low frequency amp, and a 20 w RMS Class AB high Frequency amp. The control panel features a volume control, 2 band EQ with +- 12dB of cut/boost @ 80Hz LF and +- 12 db cut/ boost @ 10kHz, a balanced Neutrik® input combo jack (Female XLR, ¼” TRS, ¼”), balanced XLR link output jack, Microphone / Line input switch, and Ground lift switch, LED Power on and Limiter LED Indicators.
The two M-6 fly points built into the cabinets, along with the optional S/J 5u or S/J 5 mounting brackets allow the Jolly 5 speakers to be surface mounted on walls or ceilings.For portable or fixed use the Jolly 5 speakers can be mounted on mic stands by using the optional A/J 5 adapters for vertical mounting. The S/J 5u- U bracket when used along with the MSA 200 adapter kit, allows horizontal mounting with adjustable tilt angling of Jolly 5ba speakers on a tripod microphone stands for near field monitoring use.
Applications
- Houses of Worship
- School & Corporate Audio Visual Sound Reinforcement
- Background Music/Announcement: Restaurants, Pubs
- Transportation Terminals, Clubs, Auditoriums, Theatre
- Self Powered Live Sound Monitoring or Mini P.A. System
60W+20W - 115DB SPL Processed Active Monitor Features
- 2-way bi-am amplified system in Bass-Reflex
- 380mm (15”) high efficiency and high excursion custom speaker
- 25mm (1”) custom compression driver
- 300Wrms MOS-FET amplifier for low frequencies
- 50W rms class AB amplifier for high frequencies
- 90°H x 60°V constant directivity horn
- ADAP® (Advanced Dynamic Active Protection)processor to limit overload
- Polypropylene enclosure with integrated handle, 2 x M10 anchoring points, 35mm (1.38”) pole mount socket
Specifications
System Type:
2 way
Dispersion:
90° H x 90° V
Components:
5.25” woofer, 1” dome tweeter
Protection:
FBT ADAP® Protection circuitry
Frequency Response:
80Hz - 20kHz
Input:
Balanced Neutrik combo jack, XLR, 1/4" TRS
Suspension Points:
2 - M-6
Output:
Balanced Neutrik® Link Out
Total Power Output:
80w RMS
Enclosure Material:
Polypropylene
Sensitivity:
93 dB @ 1 watt, 1 meter
Dimensions:
6.70”w x 10.85”h x 7”d
Maximum SPL:
114dB Net Weight: 5 lbs.
Active Crossover Frequency:
2.7 kHz Shipping Weight: 6 lbs.
