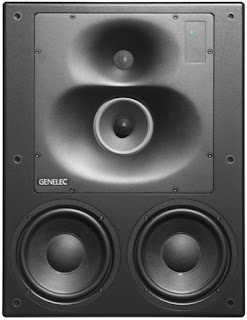

Genelec 1238CF Tri-amplified DSP MonitorThe Genelec 1238CF is a compact three-way DSP monitoring loudspeaker including drivers, multiple power amplifiers and digital signal processing (DSP) circuitry. The 1238CF is compatible with proprietary Genelec Loudspeaker Manager™ (GLM™) control software and can be combined with Genelec 8200/7200 Series products in the same control network. The 1038CF is optimized for systems utilizing one or multiple subwoofers in medium sized control rooms and suited for music recording studios, film and video post-production and general broadcasting monitoring as well as for mastering suites.
The 1238CF is designed to perform well both as a free-standing monitor and flush mounted into the control room wall. When flush mounting the loudspeaker, the space behind the loudspeaker enclosure must be sufficiently ventilated in order to dissipate heat generated by the amplifier unit located at the back panel of the loudspeaker.
The Directivity Control Waveguide™ (DCW™) Technology developed by Genelec provides excellent stereo imaging and frequency balance even in difficult acoustic environments. Versatile crossover controls allow for precise matching of the loudspeaker system to different acoustic conditions.
The rugged amplifier unit is mounted into the enclosure with vibration isolators which also act as quick release hinges making maintenance operations very easy and straightforward. The loudspeaker cabinet is constructed of painted MDF, which is heavily braced to eliminate structural resonances.
The 1238CF is designed to perform well both as a free-standing monitor and flush mounted into the control room wall. When flush mounting the loudspeaker, the space behind the loudspeaker enclosure must be sufficiently ventilated in order to dissipate heat generated by the amplifier unit located at the back panel of the loudspeaker.
The Directivity Control Waveguide™ (DCW™) Technology developed by Genelec provides excellent stereo imaging and frequency balance even in difficult acoustic environments. Versatile crossover controls allow for precise matching of the loudspeaker system to different acoustic conditions.
The rugged amplifier unit is mounted into the enclosure with vibration isolators which also act as quick release hinges making maintenance operations very easy and straightforward. The loudspeaker cabinet is constructed of painted MDF, which is heavily braced to eliminate structural resonances.
The revolutionary Directivity Control Waveguide™ (DCW™) technology greatly improves the performance of a direct radiating multi-way loudspeaker.
The DCW™ waveguide is designed to match the frequency response and directivity characteristics of the drivers in the loudspeaker. This results in an excellent flatness of the overall frequency response for on and off-axis listening positions.
The improved directivity control reduces the reflected sound energy at the listening position. This improves the stereo and sound stage imaging and ensures very small sensitivity to varying control room acoustics, actually much smaller sensitivity than with any conventional direct radiator design.
The DCW™ technology also improves the drive unit sensitivity even up to +6 dB, and therefore increases the maximum sound pressure level as well as decreases drivers and system distortion.
DCW™ Technology key features:
- Flat on and off-axis response for wider usable listening area
- Increased direct-to-reflected sound ratio for reduced control room coloration
- Improved stereo and sound stage imaging
- Increased driver efficiency
- Increased system Sound Pressure Level capacity
- Decreased drive unit distortion
- Reduced cabinet edge diffraction
- Reduced system distortion
| Technical Specifications | ||
| Input format | Analog and Digital | |
|---|---|---|
| Input word length | 16 -24 bits | |
| Digital Input | AES/EBU (single/dual wire) | |
| Connector type | XLR female input | |
| Input sampling rate | 32 -192 kHz | |
| Control network | Proprietary Genelec Loudspeaker Manager network (GLM™) | |
| System calibration | AutoCal™, GLM™ manual, Stand-alone | |
| SPL | ||
| Maximum short time sine wave acoustic output at 1 m on axis in half space, averaged from 100 Hz to 3 kHz | ≥117 dB SPL | |
| Maximum peak acoustic output per pair with music material | ≥124 dB SPL @ 2 m | |
| Drivers | ||
| Bass | 2 x 8" | |
| Midrange | 5" + DCW | |
| Treble | 1" metal dome + DCW | |
| Crossover frequencies | 420 Hz, 2.8 kHz | |
| Free field frequency response | 57 Hz - 20 kHz (± 2.0 dB) | |
| Amplifier power /ch | ||
| Bass | 150 W | |
| Midrange | 120 W | |
| Treble | 120 W | |
| Speaker dimensions (H x W x D) | ||
| mm | 610 x 470 x 257 | |
| inches | 24" x 18 1/2" x 10 1/8" | |
| Amplifier dimensions* (H x W x D) | ||
| mm | Integrated in the speaker cabinet | |
| inches | ||
| Speaker weight | 42 kg (93 lb) | |
