Price List Rp.4.450.000

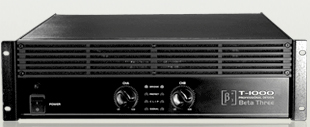

Beta Three T-1000 Power Amplifier
The Beta Three Public Address Amplifier Series have been engineered to meet the demanding commercial application requirements. The Beta Three Public Address Series speakers have been designed and engineered for easy installation across many types of applications and offer a smooth frequency response.Features:
Specifications:
Front Panel:
- 3U rack mounting
- Overheat,overload and short circuit protection
- Innovative heat sink structure
- Accurate signal amplifier,high S/N ratio
- Operation mode switchable(Mone,Stereo,Bridge mono)
- Amplification times switch(20 times/40 times/0.775V)
- Ground switchable(Lift/Gnd)
- Bridge LED indication
- Power LED indication
- Protection LED(LED will be active when overvoltage,ovrcurrent or overheat/failure)
- Adopting soft clip process when overload
- Speed of cooling fan is autmatic adujusted by power to get the best heat radiation
Specifications:
Front Panel:
Rear Panel:
Specifications:
| Output power: | |
| Stereo(W/Ch) 8ohm/4ohm | 300W/450W |
| Bridged-Mono 8ohm/4ohm | 1000W/1200W |
| Frequency Response: | 20Hz-50KHz(+/-0.1) |
| Phase Response | +/-5 degree from 20Hz-50KHz |
| Signal to noise ratio | 105dB(A-weighted)at full output and 28 dB GAIN |
| Total harmonic distortion(THD) | <0.03% from 20Hz-50KHz to 1KHz increasing linearly to 0.1% at 50KHz |
| Intermodulation distortion(IMD) | <0.03% from 10mW to 300W,400W,550W,1000W at 28dB gain |
| Slew Rate | >26V per microsecond |
| Damping factor | >200 from 20Hz-400Hz |
| Load impedance | ratied for 16,8,4,2ohm use. Safe with all types of loads,even reactive ones |
| Required AC mains | 50Hz,220V-240V |
| AC line connector | standard three-wire grounded connector |
| Net dimensions | 485×445×130mm |
| Net weight | 20Kg |
